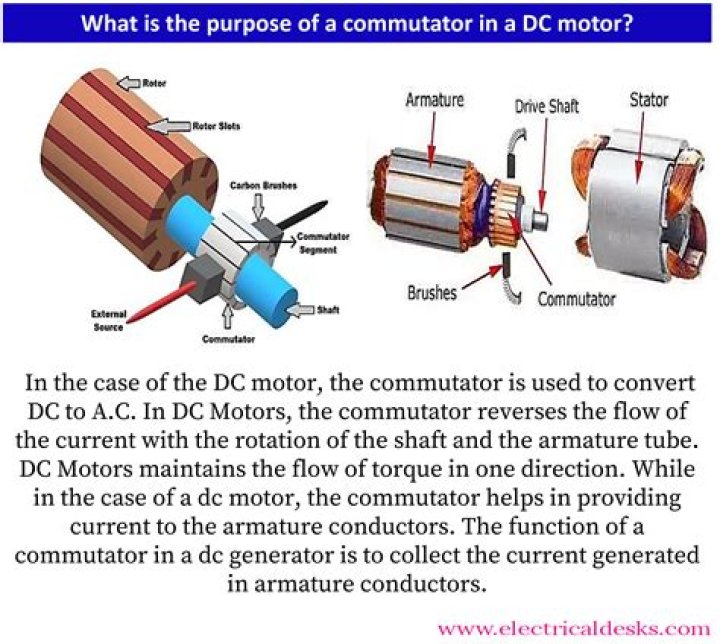

A commutator is a rotary electrical switch in certain types of electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. It consists of a cylinder composed of multiple metal contact segments on the rotating armature of the machine.

Where is the commutator on an electric motor?

A commutator itself is a split rotary ring, typically made of copper, with each segment of the ring attached to each end of the armature coil that is used in some types of electric motors and electrical generators whose job is to periodically reverse the current direction between the rotor and the external circuit.

What forms the commutator of an electric motor?

Explanation: An electric motor is composed of the following: - Two permanent magnets, which form the stationary part of the motor, known as the stator. - A commutator is a split ring which changes the polarity of the electromagnets, known as the rotor coils.

What is the junction of a commutator in a electric motor?

Explanation. The commutator consist of a conducting ring splits into half. They are connected to the power supply completing the circuit of the coil. In the vertical position, the commutator disconnects the circuit reversing the flow of current and prevents the motor from the halt.

What is the function of the commutator in this diagram?

Function of commutator: To keep the torque on a DC motor from reversing every time the coil moves through the plane perpendicular to the magnetic field, a split-ring device called a commutator is used to reverse the current at that point.

How does an Electric Motor work? (DC Motor)

25 related questions found

What is the function of commutator in a motor?

The function of commutator ring in an electric motor is to reverse the direction of current flowing through the coil every time coil just passes the vertical position during a revolution. Hence as the direction of the current is reversed, the torque is changed in the direction.

What is the function of commutator rings in the electric motor?

Answer: The function of commutator or slip ring is to change the direction of current through the coil after every half rotation.

What is a commutator Class 10?

Commutator is an attachment, connected with the armature of a motor or dynamo, through which electrical connection is made and which ensures the current flows as direct current. a device for reversing the direction of flow of electric current.

What do you mean by commutator pitch?

Commutator pitch is defined as the distance between two commutator segments in which two ends of the same armature coil are connected. We measure commutator pitch in terms of commutator bars or segments.

What is a commutator in physics?

An attachment, connected with the armature of a motor or dynamo, through which electrical connection is made and which ensures the current flows as the direct current is known as a commutator.

What is the other name of commutator?

commutator; reverser; current-reverser; switch.

What is the commutator in DC machine Mcq?

Commutator is used as mechanical rectifier in DC machines. It converts AC armature current in to DC current.

What is commutator function?

The commutator assures that the current from the generator always flows in one direction. ... On DC and most AC motors the purpose of the commutator is to insure that the current flowing through the rotor windings is always in the same direction, and the proper coil on the rotor is energized in respect to the field coils.

What does the commutator do in starter?

Starter Armature Coil Windings

The coil windings of a starter motor armature end in the commutator where they attach to specific segments. This enables the changing of electrical connections with the windings. It also allows the reversal of polarity and, therefore, the continuity of armature rotation.

What is pitch in motor?

Pitch of a winding or winding pitch

Winding pitch is defined as the distance between two successive conductors which are directly connected together around the armature. It is the beginning of two successive coil sides and is denoted by Y.

What is the pitch factor?

The pitch factor is the measure of resultant emf of a short-pitched coil in comparison with resultant emf of a full pitched coil. Hence, it must be the ratio of phasor sum of induced emfs per coil to the arithmetic sum of induced emfs per coil. Therefore, it must be less than unity.

What is pitch in a coil?

The distance between the two sides of an individual coil of an AC armature winding is termed the coil pitch. When the angular distance between the sides of a coil is exactly equal to the angular distance between the centers of adjacent field poles, the coil is termed to be a full pitch coil.

What is a commutator name the commutator in an electric motor?

A commutator is a rotary electrical switch in certain types of electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. It consists of a cylinder composed of multiple metal contact segments on the rotating armature of the machine.

What is a commutator in science?

commutator. / (ˈkɒmjʊˌteɪtə) / noun. a device used to reverse the direction of flow of an electric current. the segmented metal cylinder or disc mounted on the armature shaft of an electric motor, generator, etc, used to make electrical contact with the rotating coils and ensure unidirectional current flow.

What is an electric motor Class 10?

Electric motor is a device that converts electrical energy to mechanical energy. Parts of a Electric Motor. Insulated Copper wire: A rectangular coil of wire ABCD. Magnet Poles: A magnet as placed above ie North Pole and South Pole.

What is the use of commutator rings?

A commutator is a specialized slip ring typically used on Direct Current motors and electrical generators to transfer electrical power between the stationary housing and the rotating armature with the added purpose of reversing the electrical current direction.

What is the role of commutator in DC motor Class 10?

Commutator rings of the coil helps to reverse the direction of current flowing through the coil after every half rotation of the coil.

What is armature class 10th?

Armature: It is a rectangular iron core wrapped by the copper coil through which electricity passes and due to magnetic field it experiences a force and rotates. Brushes: It conducts current between stationary wires and moving parts, most commonly in a rotating shaft.
