Explanation: Dynamometer type wattmeter is used for the measurement of A.C. as well as D.C. power. It consists of a fixed coil forming the current coil whereas the moving coil forms the potential coil.

What is a dynamometer type wattmeter?

A dynamometer type wattmeter is basically a moving coil instrument. ... A wattmeter in which fixed coils produce the operating field is known as a dynamometer type wattmeter. The dynamometer type wattmeters are very significant because we use them for power measurement in AC circuits very commonly.

Why is dynamometer type instrument used as a wattmeter?

As the dynamometer instrument has Square Law response so can be used on both the DC as well as on AC. It is mainly used to measure both AC and DC power. Hence, used as a wattmeter. These instruments are free from hysteresis and Eddy current errors.

Which coil is fixed in Electrodynamometer type wattmeter?

The Electrodynamometer Wattmeter has two types of coils; fixed and the moving coil. The fixed coil connects in series with the circuit whose power consumption use to be measured. The supply voltage applies to the moving coil.

Which is true for the current in a pressure coil of the dynamometer type wattmeter?

Explanation: The current through the pressure coil is in phase with the applied voltage in an ideal wattmeter. The pressure coil is assumed to be purely resistive. Practically, the pressure coil has a small inductance L. As a result the current lags the applied voltage by a certain angle.

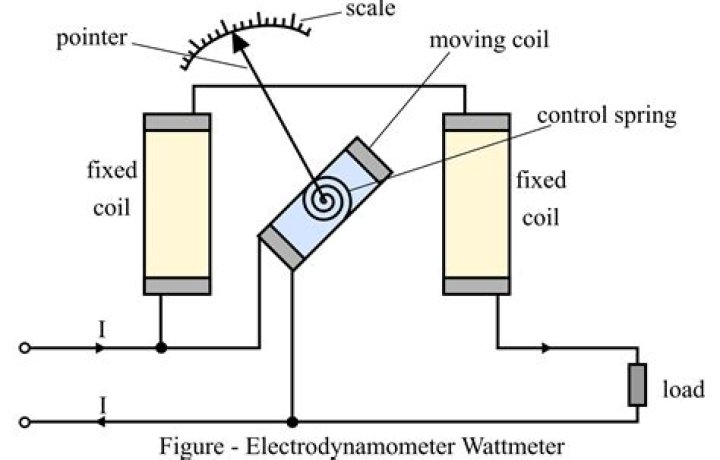

Construction and Working of Dynamometer type Wattmeter

34 related questions found

When the moving coil in a dynamometer type wattmeter deflects?

Explanation: In a Dynamometer type wattmeter, when the moving coil deflects the pointer moves over the scale. The pointer then comes back to rest at a point where the deflecting torque equals the controlling torque.

What is wattmeter pressure coil?

A pressure coil is also known as the voltage coil and is generally used in a wattmeter. ... Moreover, the current coil measures the current while the pressure coil measures the voltage. Both the coils are used in a wattmeter scale and to measure current or voltage in tension transmission lines.

Which coil of wattmeter is moving?

In electrodynamometer type wattmeter, moving coil works as pressure coil. Hence moving coil is connected across the voltage and thus the current flowing through this coil is always proportional to the voltage.

Which coil is fixed in wattmeter?

In an electrodynamometer type of wattmeter : The current coil is made fixed. The pressure coil is fixed.

What is Electrodynamometer type instrument?

The electrodynamometer is a transfer-type instrument. ... An electrodynamic instrument is a moving-coil instrument in which the operating field is produced, not by a permanent magnet but by another fixed coil. This instrument can be used either as an ammeter or a voltmeter but is generally used as a wattmeter.

How many coils are there in wattmeter?

The Electrodynamometer wattmeter has two coils i.e., fixed and moving coils. The fixed coil is connected in series with the circuit in order to measure power consumption.

Which type of wattmeter is used in laboratory?

Among these types of wattmeter, the suspended-coil torsion wattmeter is used as a standard meter in test laboratories only. The electrostatic wattmeter is suitable for high voltage low power factor circuits like dielectric loss measurement in capacitors.

What are the types of wattmeter?

There are two types of Wattmeter given below: Dynamometer Type Wattmeter. Induction type Wattmeter.

How does an electrodynamic wattmeter work?

Electrodynamic wattmeters are a design that goes back to the early 20th century. They work by using three coils: two fixed in series with the electrical load, and a moving coil in parallel with it. The series coils measure current flowing through the circuit, the parallel coil measures voltage.

What is induction type wattmeter?

Induction type wattmeter is one of the types of wattmeters that works on the principle of mutual induction. Since the principle of induction can only possible with alternating current. Thus induction type wattmeters are used for the measurement of power only in ac circuits.

What is wattmeter and its working principle?

The working of induction type wattmeter is based on the principle of electromagnetic induction. The induction wattmeter consists of two laminated electromagnets viz. Shunt Magnet and Series Magnet. The shunt magnet is connected across the supply and carries a current proportional to the supply voltage.

What is moving iron type instrument?

Definition: The instrument in which the moving iron is used for measuring the flow of current or voltage is known as the moving iron instrument. It works on the principle that the iron place near the magnet attracts towards it. The force of attraction depends on the strength of the magnet field.

What are the terminals of wattmeter?

Wattmeter Internal Circuit

The two terminals of the current coil are denoted by M and L. M terminal is to be connected to the power supply and the L terminal is to be connected to the Load. The two terminals of the voltage or pressure coil are denoted by C and V.

What does a wattmeter measure?

In this context, a wattmeter is a device that measures power using one current and one voltage input. Many Power Analyzers and DSOs have multiple current/voltage input pairs capable of measuring watts, in effect acting as multiple wattmeters within a single instrument.

Which of the following is not a type of wattmeter?

Moving coil permanent magnet instrument can be used as ammeter and voltmeter but not as wattmeter. Electrodynamometer instrument has two fixed coils and one moving coil. For using this instrument as a wattmeter to measure the power, the fixed coils act as a current coil and must be connected in series with a load.

What is the difference between induction type wattmeter and dynamometer type wattmeter?

Answer: These types of watt-meters operate on the same working principle on which the induction type ammeter and voltmeter operates. These instruments can only be used on ac supply while dynamo-meter type watt meters can be used on either ac or dc supply system.

Which damping method is common in moving coil instrument?

In the moving coil instrument type instruments, damping is provided by eddy current damping.

What is coil use?

coil, in an electric circuit, one or more turns, usually roughly circular or cylindrical, of current-carrying wire designed to produce a magnetic field or to provide electrical resistance or inductance; in the latter case, a coil is also called a choke coil (see also inductance).

How do you use a wattmeter?

The wattmeter measures the electricity used in terms of the number of watts used. To use it, plug it into an outlet, then plug in your electrical device into the wattmeter. It will measure the amount of electricity your device is using.
