Twin-screw extruders comprise a pair of parallel screws, rotating inside a barrel with an 8-shaped cross-section (Figure 15.6). At the exit end, each half of the barrel converges into a short conical section, each with a die at the apex. The screws can be co-rotating or counter-rotating (Figure 15.7).

How does a screw extruder work?

Screw extruders are divided into single screw and multiscrew extruders. ... The materials enter from the hopper into the feed throat are conveyed by the rotary motion of the screw. The mechanical shear from the screw and thermal heat from the barrel convert the solid polymer into melt which is then pushed out of the die.

What are twin screw extruders?

A twin screw extruder is a machine consisting of two intermeshing, co-rotating screws mounted on splined shafts in a closed barrel. The screws are tight and self-wiping, which eliminates stagnant zones over the entire length of the process section. This results in high efficiency and perfect self-cleaning.

What are the advantages of twin screw extruder?

Advantages Of Twin Screw Extrusion Technology

• Remarkable mixing capability.
• High level of process flexibility.
• Better control of process parameters.
• Higher process productivity.
• Higher business potential.
• Saving power and reducing cost of production.

What is a double screw extruder?

The double screw extruders are composed of two screwed assemblies, coupled and co-rotating, mounted on fluted shafts located inside a closed barrel. ... In the processes by extrusion of double screw, the raw materials can be solid (powders, granulates, flours), liquids, suspensions, and possibly gases.

Twin screw extruder working principle - 3D demonstration

38 related questions found

What is a twin screw?

: having a right-handed screw propeller and a left-handed screw propeller parallel to each other one on each side of the plane of the keel — compare single-screw.

What is the difference between single screw extruder and twin screw extruder?

In single screw extruder the granular materials stay longer in the extruder slowing down production time. In a twin screw extruder the operation is complex and process control requirements are higher than that of a single screw extruder which has easy manipulation and simple control process.

How does a twin screw pump work?

How Do Twin Screw Pumps Work? A twin screw pump is a positive displacement pump what means that the pump is transferring a certain volume of product in accordance to the speed and pitch of the screws. While turning, the two screws are forming closed chambers that are moving in an axial direction.

How does a twin screw supercharger work?

In a twin-screw style supercharger, the two rotors are designed to mesh with one another and compress the air forced between them. So while they're both similar in design, twin-screw superchargers compress the air directly while roots superchargers create pressure in the manifold that compresses the air.

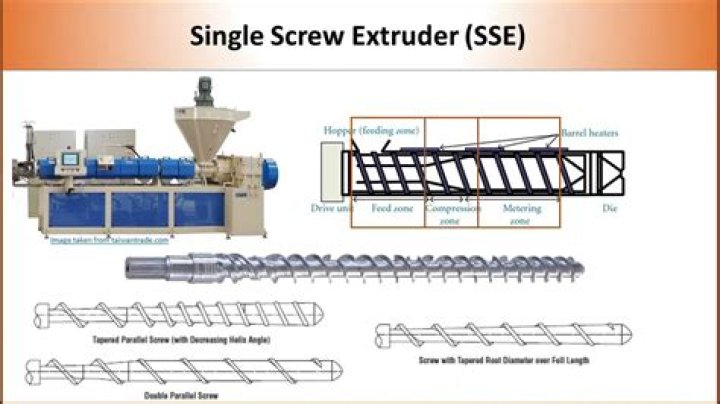

What is single screw extruder?

A single screw extruder is a machine used to form a plastic product into the required shape. The machine heats the plastic raw material (e.g. PVC) to its melting point, after which it is pushed through a die that gives the material its shape.

How are extruders heated?

It's generally assumed that much of the heat for melting is generated by the barrel. ... In reality, melting occurs in single-screw extruders primarily as a result of shear heating of the polymer. Shear heating is the result of a polymer-filled screw rotating within the barrel.

How does a extruder work?

Plastic pellets are fed from a hopper into the barrel of the extruder, where the pellets are gradually melted by mechanical energy generated by a turning screw and by heaters arranged along the barrel. The molten polymer is forced through a die, which shapes the extrudate into products such as the examples shown.

Why is twin screw extrusion starve fed?

Twin screw extruders are normally run starve fed, so the operator is free to adjust the screw speed for a certain throughput rate, but there is a proper operating range of screw speed allowable. If the screw speed is too high, the extruder becomes unfilled of polymer and surging may result. ... Extrusion feeding.

What are the 3 types of superchargers?

There are three main categories of superchargers for automotive use:

• Centrifugal turbochargers – driven from exhaust gases.
• Centrifugal superchargers – driven directly by the engine via a belt-drive.
• Positive displacement pumps – such as the Roots, twin-screw (Lysholm), and TVS (Eaton) blowers.

Why do superchargers whine?

Centrifugal superchargers provide the most efficient air compression system, and they're the ones typically found in most vehicles. The sounds that they make can turn heads on the busy street! When the compressed air leaves the discharge outlet, the supercharger creates a whistling, whining sound.

Do superchargers shorten engine life?

Assuming a properly tuned system, proper oil change and engine maintenance, and similar driving, supercharging generally will not shorten the life of an engine, just as is the case with OEM turbocharging (with proper cooldown for turbochargers.

What is the working principle of screw pump?

Screw pumps operate using two counter-rotating screw rotors which are engineered so that they rotate “towards each other”. This traps the gas in the space between the “screws” of their rotors. As the screws rotate, this trapped volume decreases which not only compresses the gas but moves it towards the exhaust.

What principle does screw pump operate?

Screw pumps belong to the positive displacement pump principle and use one, or more, screws to move fluids or solids along the screw(s) axis. Historically, the pump was invented by Archimedes for transferring water on the field to a higher level.

How does a water screw work?

The screw is usually turned by windmill, manual labor, cattle, or by modern means, such as a motor. As the shaft turns, the bottom end scoops up a volume of water. This water is then pushed up the tube by the rotating helicoid until it pours out from the top of the tube.

How many types of extruder are there?

There are two major types of extruders; single and twin screw (co-rotating and counter rotating).

How many zones are in a screw?

A screw may be divided into zones or regions. Typically a general-purpose screw has three distinct zones: the feed zone, the compression (plasticating) zone, and the metering (pumping) zone. The feed section, which conveys the material from the hopper, starts at the rear of the hopper and usually has a constant depth.

What is food extruder machine?

Extrusion is used in food processing, forcing soft mixed ingredients through an opening in a perforated plate or die designed to produce the required shape. The extruded food is then cut to a specific size by blades. The machine which forces the mix through the die is an extruder, and the mix is known as the extrudate.

What is screw extruder?

A screw extruder is a type of mixer which moves the components through a cylinder using a screw which turns. ... Single screw extruders are simply comprised of a central screw that rotates within a heated cylinder. A screw extruder is a type of mixer which moves the components through a cylinder using a screw which turns.

Who invented twin screw extruder?

In 1940, Wilhelm Ellermann of Krupp developed what is claimed to be the first commercial intermeshing, counter-rotating twin-screw extruder, called the Knetwolf. Krupp patented it in 1941 and built units for I.G. Farben with screws up to 400 mm diam.

What is a twin screw propulsion?

Propellers turning clockwise seen from aft are “right-handed.” In twin-screw ships, the starboard propeller is usually right-handed and the port propeller, left-handed. The propellers are then turning outwards. ... This basic goal is the same for other foil flows like airfoils and ship rudders.
