To troubleshoot a split-phase motor, apply the following procedure:

1. Turn power to motor OFF. ...
2. Check to determine if the motor is controlled by a thermal switch. ...
3. If the motor does not start, use a voltmeter, such as a Fluke 87V Industrial Multimeter, to check for voltage at the motor terminals.

How do you test a single phase motor with a multimeter?

With a multimeter, measure the resistance between motor frame (body) and earth. A good motor should read less than 0.5 ohms. Any value greater 0.5 ohms indicate trouble with the motor. For single phase motors, the expected voltage is about 230V or 208V depending whether you are using the UK or America voltage system.

How do you test a motor to see if it is bad?

With a multimeter set to low ohms (usually 200), test between each winding terminal and the metal casing of the motor. If there is any reading on any of these then the motor is bad, do not use it. You may find that when it runs ungrounded that the casing becomes live at up to supply voltage.

Does a split phase motor have a start winding?

What is Split Phase Induction Motor? An alternate name of the this motor is resistance to start the motor. This motor has a single-phase along with a stator as well as a rotor with a single cage. The stator of this type of induction motor includes two windings like main & an auxiliary or starting winding.

How do you check if a 3 phase motor is burnt out?

Using a multimeter, check the continuity of motor winding from phase to phase ( U to V, V to W , W to U ). Each phase to phase must have a continuity if winding is OK. If any particular phase fails the continuity test, your motor is probably burnt.

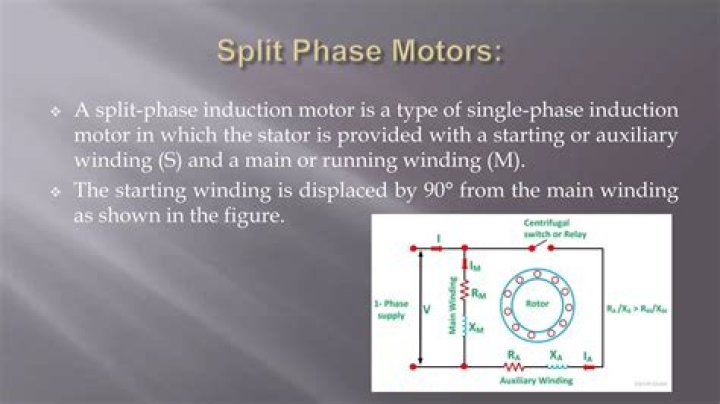

Split Phase Motors

44 related questions found

Should a starting winding in the split-phase motor fail to Energise what will be the result?

Should the switch fail to close when the motor stops, the starting winding circuit will be open. As a result, when the motor circuit is again energized, the motor won't turn but will simply produce a low humming sound.

Does a split-phase motor have a capacitor?

A split-phase motor has no capacitance in the auxiliary circuit. ... A split-phase motor has significantly lower torque at starting than any of the capacitor motors due to the reduced phase angle between main and auxiliary winding currents.

How may a capacitor start motor be distinguished from a split-phase motor?

Can a split-phase motor be operated at more than one voltage? Yes, they can operate with either a series circuit or a parallel circuit. How may a capacitor start motor be distinguished from a split phase motor? Capacitor start motors can be distinguished by the start motor mounted to the unit.

How do you check motor windings with a multimeter?

Inspect the Motor Windings With a Multimeter

To begin, set the multimeter to read ohms and then test the motor's wires and terminal. You should test the windings for a “short to ground” in the circuit and open or shorts in the windings.

What happens to a 3 phase motor when it loses a phase?

If a three-phase motor is operating and loses one of the phases, the motor will continue to operate at a reduced speed and experience vibrations. The current will also increase considerably in the remaining phases, causing an internal heating of the motor components.

Should a motor have continuity?

The windings (all three in a three-phase motor) should read low but not zero ohms. ... It will usually be low enough (under 30 Ω) for the audible continuity indicator to sound. For proper motor operation, all windings must have megohm readings to ground, i.e. to the motor enclosure.

How much winding does a single phase motor have?

Hence, stator of a single phase motor has two windings: (i) Main winding and (ii) Starting winding (auxillary winding). These two windings are connected in parallel across a single phase supply and are spaced 90 electrical degrees apart.

Will a motor run without a capacitor?

Answer: There are three common types of single-phase motors named capacitor motor, shaded pole motor and split phase motors. Shaded pole and split phase single-phase motors do not require a capacitor to run.

Can you run a pump without a capacitor?

The motor will run fine without the capacitor. However, the problem comes if the motor stops and tries to restart. Say for instance you have a power blip for a second or two. The pump will shut down and not be able to restart, therefore ruining the motor.

How do you control the speed of a split-phase motor?

Limited speed control can be achieved in the split-phase induction motor. Control of the slip is accomplished by varying the magnitude of the voltage applied to the stator. However, the speed must not be made so low that the centrifugal switch allows the starting winding to be energized during normal operation.

Why is magnetic field important in split-phase motors?

A stator rotating magnetic field is necessary only to start the rotor turning. Once the rotor has accelerated to approximately 75% of rated speed, the start winding can be disconnected from the circuit and the motor will continue to operate with only the run winding energized.

Which of the split-phase motor winding has a low resistance reading?

The Split Phase Motor is also known as a Resistance Start Motor. ... The main winding has very low resistance and a high inductive reactance whereas the starting winding has high resistance and low inductive reactance.

What kind of windings does a split-phase motor have?

In split-phase motor two windings named main winding and starting winding are provided. At the time of starting, both the main and starting windings should be connected across the supply to produce the rotating magnetic field, and when the supply is given to the stator the rotating magnetic field is produced.
