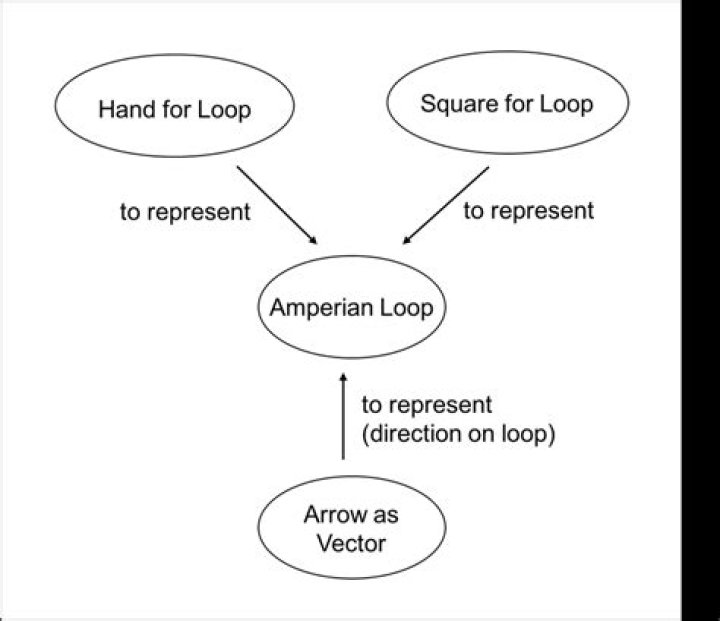

Ampere's Law

1. Draw a closed loop of any shape.
2. Walk around the loop once. For each step you take, multiply the length of your step by the component of the magnetic field that is parallel to your step.
3. Add up all those products around the entire loop.
4. That sum is proportional to the net current passing through the loop.

What is Amperian path?

The path integral of the dot product of magnetic field and unit vector along a closed loop, Amperian loop, is proportional to the net current encircled by the loop,�A current is positive if it flows along the RHR normal direction of the Amperian loop, as defined by the direction of integration.

What is Amperian surface current?

It is an imaginary closed loop around a current carrying conductor through which ampere's law is applied to that conductor.

What is the net current enclosed by the Amperian loop?

4: By extending the Amperian loop to both sides of the solenoid, we conclude that the magnetic field just outside the solenoid must be zero, because the net current enclosed is zero.

How do you find the Amperian loop?

Ampere's Law

1. Draw a closed loop of any shape.
2. Walk around the loop once. For each step you take, multiply the length of your step by the component of the magnetic field that is parallel to your step.
3. Add up all those products around the entire loop.
4. That sum is proportional to the net current passing through the loop.

PHYS 102 | Ampere's Law 1 - Several Amperian Loops

36 related questions found

What is magnetic field formula?

The equation for the magnetic field strength (magnitude) produced by a long straight current-carrying wire is: B=μ0I2πr. For a long straight wire where I is the current, r is the shortest distance to the wire, and the constant ₀=4π10⁻⁷ T⋅m/A is the permeability of free space.

What is the importance of Amperian loop?

It is an imaginary closed looparound a current carrying conductor through which ampere's law is applied to that conductor. ... A current is positive if it flows along the RHR normal direction of the Amperian loop, as defined by the direction of integration.

Which unit is Tesla?

The tesla (symbol T) is the derived SI unit of magnetic flux density, which represents the strength of a magnetic field. One tesla represents one weber per square meter.

How do you find the magnitude and direction of a magnetic force?

Magnetic Force

1. The force is perpendicular to both the velocity v of the charge q and the magnetic field B.
2. The magnitude of the force is F = qvB sinθ where θ is the angle < 180 degrees between the velocity and the magnetic field. ...
3. The direction of the force is given by the right hand rule.

How do you do the right hand rule?

The right hand rule states that: to determine the direction of the magnetic force on a positive moving charge, point your right thumb in the direction of the velocity (v), your index finger in the direction of the magnetic field (B), and your middle finger will point in the direction of the the resulting magnetic force ...

What does DS mean in Ampere's law?

The Amperian loop is chosen so that B is constant on the loop and in the same direction as ds - that is a circle whose plane is perpendicular to the wire and centered on the wire. This allows us to take B "out of the integral". Evaluation of B: With the Amperian loop above we have. so that.

What is Ampere's loop?

Ampere's Law states that for any closed loop path, the sum of the length elements times the magnetic field in the direction of the length element is equal to the permeability times the electric current enclosed in the loop. ...

Is Ampere's law always true?

Ampere's law is always true. It is just that in certain cases it is easy to use Ampere's law to calculate the magnetic field and in others it is too difficult.

How do you calculate the magnetic field of a toroid?

The magnetic field of a current-carrying toroid is independent of the radius. This is because the magnetic field of the toroid is given as B = μ_onI where n is the number of turns, I is the electric current, and μ_o is the permeability.

What is a Nanotesla?

: a unit of magnetic flux density equal to 10⁻⁹ tesla.

What is T in magnetic field?

Tesla (T) - Magnetic Field Intensity Unit. Definition: The International System unit of field intensity for magnetic fields is Tesla (T). One tesla (1 T) is defined as the field intensity generating one newton (N) of force per ampere (A) of current per meter of conductor: T = N × A-1 × m-1 = kg × s-2 × A-1.

What is a Microtesla?

Microtesla meaning

Filters. (metrology) An SI unit of magnetic flux density equal to 10⁻⁶ teslas. noun. 1.

What is the importance of Biot Savart law?

We can use Biot–Savart law to calculate magnetic responses even at the atomic or molecular level. It is also used in aerodynamic theory to calculate the velocity induced by vortex lines.

What is the importance of Ampere circuital law?

Ampere's Law allows us to bridge the gap between electricity and magnetism; that is, it provides us with a mathematical relation between magnetic fields and electric currents. It gives us a way to calculate the magnetic field that is produced as a result of an electric current moving through a wire of any shape.

What is the magnetic field inside the solenoid?

Inside a solenoid the magnetic field lines will be straight lines and the field will be strong. Outside the solenoid the magnetic field will be weak and the field lines will curl up to form closed loops. Hence, the magnetic field inside a solenoid will be uniform.

How do you find the magnetic field in a circular loop?

Magnetic Field Produced by a Current-Carrying Circular Loop

B=μ0I2R(at center of loop) B = μ 0 I 2 R ( at center of loop ) , where R is the radius of the loop. This equation is very similar to that for a straight wire, but it is valid only at the center of a circular loop of wire.

What is the value of 1 tesla?

One tesla is equivalent to: 10,000 (or 10⁴) G (Gauss), used in the CGS system. Thus, 10 kG = 1 T (tesla), and 1 G = 10⁻⁴ T = 100 μT (microtesla).

How do you create a magnetic field?

A magnetic field can be created by running electricity through a wire. All magnetic fields are created by moving charged particles. Even the magnet on your fridge is magnetic because it contains electrons that are constantly moving around inside.
