To test the SCR, connect the positive output lead of the ohmmeter to the anode and the negative lead to the cathode. The ohmmeter should indicate no continuity. Touch the gate of the SCR to the anode. The ohmmeter should indicate continuity through the SCR.

How do you test a SCR thyristor?

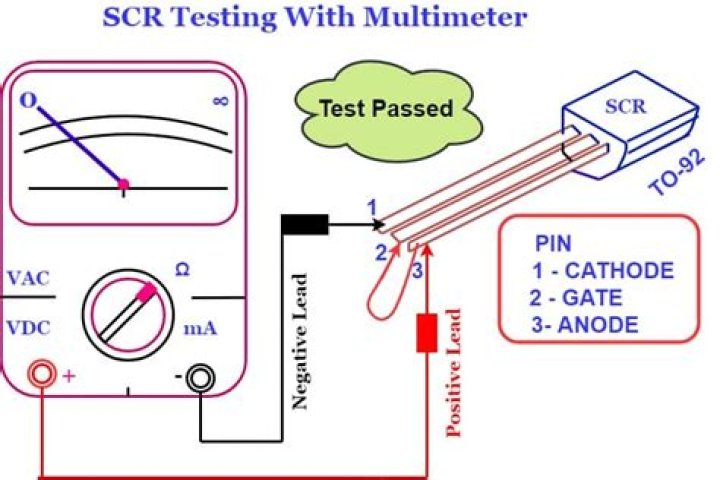

Procedure to Test the SCR with the help of Multimeter:

1. To test the SCR, keep the Multimeter into Ohmmeter mode.
2. Connect the positive output lead of the multimeter to the anode and the negative lead to the cathode.
3. The multimeter should indicate no continuity.
4. Touch the gate of the SCR to the anode.

How do I find SCR terminals?

SCR terminals may be identified by a continuity meter: the only two terminals showing any continuity between them at all should be the gate and cathode.

What is the meaning of SCR test?

Serum Creatinine (sCr)

A serum creatinine test measures the amount of creatinine in your blood. Creatinine is a waste product that is produced from the normal wear and tear on muscles in your body. Waste products like creatinine are filtered out of the blood by healthy kidneys and leave your body in your urine.

How do I turn my SCR on?

How to turn ON an SCR ? As mentioned earlier, the SCR can be switched on either by increasing the forward voltage beyond forward break over voltage V_FB0 or by applying a positive gate signal when the device is forward biased.

How To Test an SCR

40 related questions found

How do you know if SCR is on or off?

Circuit for testing SCR.

Connect the SCR to the circuit as shown in diagram and switch S2 ON. The lamp must not glow. Now press the push button switch S1 ON and you can see the lamp glowing indicating the switch ON of SCR. The lamp will remain ON even if the push button S1 is released (indicates the latching).

What happens when SCR is turned on?

When the SCR is triggered, then the gate signal must be detached instantly, otherwise, the power loss will be there within the gate junction. As an SCR is in reverse biased, then gate signal shouldn't be applied to this.

What is a bad creatinine level?

What are considered high creatinine levels? A person with only one kidney may have a normal level of about 1.8 or 1.9. Creatinine levels that reach 2.0 or more in babies and 5.0 or more in adults may indicate severe kidney impairment.

What test is E U CR?

Electrolytes, Urea, and Creatinine (E/U/Cr) is a common Kidney function test that is often prescribed as part of a routine medical examination.

How do you test a SCR hockey puck?

Attach the positive (red) lead of the tester to the anode (stud) of the SCR. A good SCR should light the tester until the cathode (red) lead is jumped to the anode, which will turn the SCR off. Disk type SCRs should be tested with pressure applied to both the anode and cathode.

How do you test DIAC?

Perform the Test

Step 1: Set the voltage out to 0 volts as measured across TP1 and TP3. Connect a D.C. volt meter across TP2 (red lead) and TP3 (black lead). Slowly increase the voltage. In the case of my test, the DIACs' voltage appeared across R1 at about 30 volts on TP1 then quickly jumped up to between 10-15 volts.

What causes SCR to fail?

The cause for failure can be the result of violating the duty cycle limitations; i.e starting too often without proper elapsed time between starts. ... These transient surges can cause failure of the SCR's as well.

Is thyristor and SCR same?

Thyristor is a four semiconductor layer or three PN junction device. It is also known as “SCR” (Silicon Control Rectifier). The term “Thyristor” is derived from the words of thyratron (a gas fluid tube which works as SCR) and Transistor. Thyristors are also known as PN PN Devices.

How do you know if a transistor is NPN or PNP?

Connect the positive lead of the multimeter to the Base (B) of the transistor and connect the negative lead to the Emitter (E) of the transistor. If it is an NPN transistor then meter should show a voltage drop between 0.45V and 0.9V. If it is a PNP transistor, then it should display see “OL” (Over Limit).

What is E U CR test for?

The Electrolytes, Urea and Creatinine test is a commonly performed test to assess blood levels of various electrolytes in the body and kidney function. The kidneys are essential for the control of the body's fluid balance.

What is MP test?

The Malarial Parasite test helps to detect malaria antigens in the blood. The malarial parasite is detected when an individual is suffering from malaria. Anopheles mosquito if infected with malaria can transfer the malarial parasite to human blood by its bite. CBC is done: • As a routine check-up.

Why electrolyte test is done?

An electrolyte test can help determine whether there's an electrolyte imbalance in the body. Electrolytes are salts and minerals, such as sodium, potassium, chloride and bicarbonate, which are found in the blood. They can conduct electrical impulses in the body.

Is 1.7 creatinine level high?

One formula for estimating kidney function equates a creatinine level of 1.7 mg/dL for most men and 1.4 mg/dL for most women to 50 percent of normal kidney function.

Is a 3.2 creatinine level bad?

But sometimes, routine blood or urine tests can reveal low (or high) levels of creatinine. Normal levels vary according to your body size and muscle mass. For example, a normal range for men is between 0.6 and 1.2 mg/dl and a normal range for women is between 0.5 and 1.1 mg/dl.

What is a good creatinine level?

The kidneys are responsible for keeping the level of creatinine in the blood within a normal range. The typical reference range for serum creatinine is 60 to 110 micromoles per liter (μmol/L) (0.7 to 1.2 milligrams per deciliter (mg/dL)) for men and 45 to 90 μmol/L (0.5 to 1.0 mg/dL) for women.

Which is the best method to turn on the SCR?

Gate triggering is the method in which positive gate current is flown in forward biased SCR to make it ON. Gate triggering is, in fact, the most reliable, simple, and efficient way to turn on SCR.

When a SCR is in the forward blocking state?

In order for gate triggering to occur, the thyristor should be in the forward blocking state where the applied voltage is less than the breakdown voltage, otherwise forward-voltage triggering may occur. A single small positive voltage pulse can then be applied between the gate and the cathode.

How does an SCR work as a switch?

SCR as a Switch

The AC power supplied to the load is controlled by applying alternate triggering pulses to the SCR. ... If the switch S is closed, gate current is applied to the SCR1 through diode D1 and hence SCR1 is turned ON. Therefore, the current flows to the load through SCR1.
