How to calculate fermi energy?
Rachel Hill Calculate Fermi energy, Fermi temperature, Fermi velocity and Fermi wave vector (Fermi wavenumber)

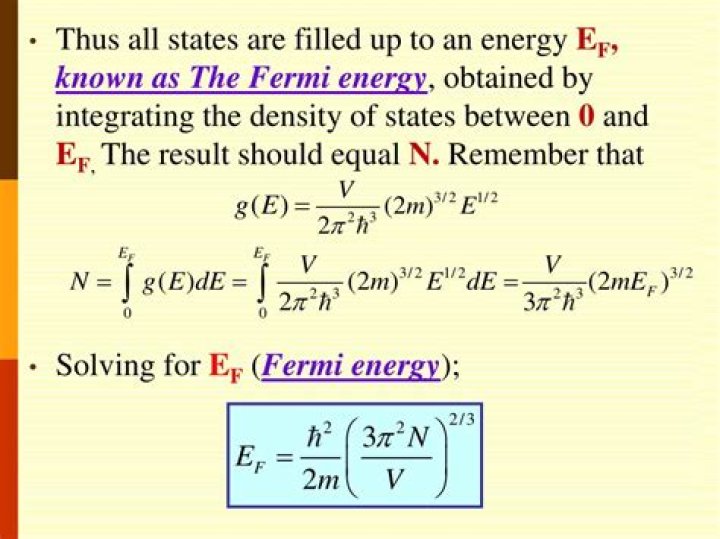

- Fermi wave vector (Fermi wavenumber): kf = (3 * π² * n)^(¹/₃)
- Fermi energy: Ef = ħ² * kf² / (2 * m)
- Fermi velocity: vf = ħ * kf / m.
- Fermi temperature: Tf = Ef / k.
What is Fermi energy formula?
The highest energy filled is called the Fermi energy. E=π2ℏ22mL2(n21+n22+n23).
What is Fermi energy Semiconductor?
The Fermi Level is the energy level which is occupied by the electron orbital at temperature equals 0 K. ... The lower energy orbitals combine and form a band called the valence electron band, and the higher energy orbitals combine to form a band called the conduction band.
What is the Fermi energy of an type semiconductor?
The Fermi level is the energy separating occupied states of the valence band from empty states of the conduction band at the absolute temperature T=0 Kelvin.
What is NC and NV in semiconductors?
Nc and Nv, the effective density of states at the band edges, are dependent on temperature and the effective mass of the electron and holes respectively. For Si, m∗
Fermi Energy Example
18 related questions foundHow do you calculate Fermi energy of silicon?
This is a supplement presenting examples on the relationship between doping, carrier concentrations and the Fermi level at equilibrium. Required Constants: For silicon at T=300 ◦K, ni = 1.45 × 1010 1/cm3. The Boltzmann constant kB = k = 8.61 × 10−5 eV/K. Silicon bandgap energy Eg=1.12 eV.
How do you calculate Fermi energy from electron density?
Fermi Energies for Metals
We can also turn this around and express the Fermi energy in terms of the free electron density. For a metal with Fermi energy EF = eV, the free electron density is n = x10^ electrons/m3.
What is Fermi energy metal?
Fermi energy is often defined as the highest occupied energy level of a material at absolute zero temperature. ... The fermi energy is the difference in energy, mostly kinetic. In metals this means that it gives us the velecity of the electrons during conduction.
What is Fermi energy level class 12?
The highest energy level in the conduction band filled up with electrons at absolute is called Fermi level and the energy corresponding to the Fermi level is called Fermi energy. In other words, it can also be defined as the probability by which electrons occupy energy levels in the valence band and conduction band.
What is the Fermi energy of Aluminium?
The Fermi energy of aluminum is 11.6 eV; its density and molar mass are 2.70 g/cm³ and 27.0 g/mol, respectively.
Is Fermi energy constant?
The value of the Fermi level at absolute zero temperature (−273.15 °C) is known as the Fermi energy. It is also the maximum kinetic energy an electron can attain at 0K. Fermi energy is constant for each solid.
What is the Fermi energy of silicon?
The minimum energy required to the break the covalent bond in germanium crystal is 0.72 eV and for silicon its value is 1.1 eV.
What is the intrinsic Fermi energy?
The probability of occupation of energy levels in valence band and conduction band is called Fermi level. ... In intrinsic or pure semiconductor, the number of holes in valence band is equal to the number of electrons in the conduction band.
Where is Fermi energy in intrinsic semiconductor?
Position of the Fermi level lies in the middle of the conduction band and valence band because the number of holes and electrons are almost equal in numbers in intrinsic semiconductors . Therefore , option 1 is correct.
How do you calculate NC in semiconductors?
It is known that the Nc= Ac N^3/2, Nv=Av T^3/2, Ac and Av are known constants since Nc and Nv are known at room temperature T= 300 K. To get the requited temperature T you need only to: ni = Na or Nd.
What is ND in semiconductors?
nd : concentration of electrons in the donor energy state. pa : concentration of holes in the acceptor energy state. Nd : concentration of donor atoms. Na : concentration of acceptor atoms.
What is EC and EV in semiconductor?
The reference is the bottom of the valence band. Ev and Ec represent the top of the valence band and the bottom of the conduction band. So that the energy distance between them is the band gap (Eg). ... At any temperature, thermal excitation will always cause electrons to move from the valence band to the conduction band.
What is the Fermi surface?
In condensed matter physics, the Fermi surface is the surface in reciprocal space which separates occupied from unoccupied electron states at zero temperature. The shape of the Fermi surface is derived from the periodicity and symmetry of the crystalline lattice and from the occupation of electronic energy bands.
How does Fermi energy vary with temperature?
The experiment shows that the Fermi level decreases with increasing temperature and has almost the same temperature dependence as the energy gap. It is pinned at about 0.63 of energy gap below the conduction band.
How does Fermi energy vary in different types of semiconductors?
Why does the Fermi energy level lie in the centre of the energy band gap of a semiconductor? Fermi energy level is defined highest energy level below which all energy levels are filled at ok. But in the case of a semiconductor there is no allowed energy level between the valence band and the Fermi energy level.
What is Fermi energy level and location of semiconductor?
Fermi energy level is defined highest energy level below which all energy levels are filled at ok. But in the case of a semiconductor there is no allowed energy level between the valence band and the Fermi energy level.
