How to adjust backlash on differential?
John Hall They work by tightening one side and loosening the other side to move the differential sideways. If your rear end does not use adjusters, then you need to adjust backlash by using shims. By placing various thickness shims on either side of the differential, you can adjust backlash.
What is excessive backlash in a differential?
The pinion gear is supported by two bearings, whose pre-loads are established by a crushable spacer between them. When a differential is set up this spacer is crushed by tightening the pinion nut; if the spacer is crushed too much, you get excessive backlash.
How can I improve my backlash?
Backlash adjustment can be made by adjusting nuts or by moving shims from one side to the other. To increase backlash, move the ring gear away from the pinion gear. To decrease backlash, move the ring gear towards the pinion gear.
What do you adjust to remove or add backlash in gear set?
The common way to control backlash of bevel gear meshes is to adjust the mounting distance (axial backlash) by adding shims. When adjusting the mounting distance, it is important to keep proper tooth contact in consideration of the gears and pinions in balance.
What tool is used in differential backlash?
(1) TLSM02 Dial Indicator with Magnetic Stand. The TLSM02 is used for measuring backlash.
Differential Backlash Exercise
27 related questions foundWhat is backlash in differential gears?

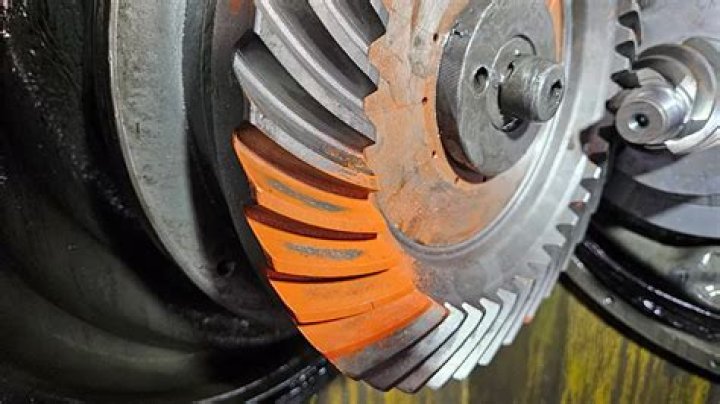

Backlash is the play—or how much play there is between your ring and pinion gears. ... Once the pinion depth is properly set, the backlash needs to be adjusted and set. Some rear ends use adjusters that are located next to the differential carrier bearings, and others are adjusted by adding/removing shims.
Why is backlash bad?
Backlash creates an issue in positioning when an axis changes direction. The slack in the threads/gears cause measureable error in axis positioning. The MachMotion software can compensate a small amount for this error and better track the true position.
What happens with too much backlash?
If there is too much backlash, the ring gear needs to move closer to the pinion gear. If there is not enough, the ring gear needs to move away from the pinion gear. ... If it is too loose, this will allow the gears to beat on each other, and you will eventually fracture or break teeth off the gears.
Does pinion depth effect backlash?
Decreasing pinion depth also increases backlash and moves the drive pattern slightly towards the heel, and the coast pattern slightly towards the toe. Increasing pinion depth will also increase pinion-bearing preload unless the outer pinion shims are adjusted.
How do I quiet down my rear differential?
How to Quiet Differential Whine- Prep the area.
- Replace Differential Fluid.
- Replace the seal.
- Test the Vehicle.
- Inspect rear differential gasket, pinion seal, and side seal.
- Clean the housing.
- Replace broken parts.
- Lubricate and re-install axle into differential.
How tight should a pinion nut be?
Be careful a quarter turn past optimum is way too tight. You only want 12-20 in. lbs of torque on the free spinning pinion. If you go too tight, the only thing to do is take it apart and crush a new sleeve.
How do you adjust pinion depth?
Pinion Depth – The distance from the face of the pinion gear to the centerline of the ring gear. This is adjusted by adding or subtracting shims to the inner pinion bearing.
How do you reduce backlash in gears?
The simplest and most common way to reduce backlash in a pair of gears is to shorten the distance between their centers. This moves the gears into a tighter mesh with low or even zero clearance between teeth. It eliminates the effect of variations in center distance, tooth dimensions, and bearing eccentricities.
Why is my rear end humming?
A humming noise is often caused by an incorrectly installed ring and pinion gear that needs to be adjusted. Incorrect installation of the ring and pinion gear prevents proper tooth contact and can cause rapid tooth wear and gear failure. ... Humming noise can also be due to worn out bearings, which need to be replaced.
What happens if pinion depth is wrong?
Again, you'll need to determine the proper spacing by using a pinion depth setting tool to ensure proper installation. Improper gear spacing will lead to wear and damage to your gear set. ... If this setting is not correct, it may cause overheating or damage to the gears.
Should there be any play in rear differential?
If the rear end isn't clunking, whining or grinding, then you're likely seeing the play from the differential gears. Think about it, if you really had a lot of slack between the pinion and ring gear, you would hear it while driving. Now if you can wiggle the pinion left to right you would have a real problem.
Why is backlash needed in a rear axle?
The gap is necessary so that the driver or electronics can engage the gears easily while synchronizing the engine speed with the driveshaft speed. If there was a smaller clearance, it would be nearly impossible to engage the gears because the teeth would interfere with each other in most configurations.
Why is backlash necessary?
Backlash is necessary to provide the running clearance needed to prevent binding of the mating gears, which can result in heat generation, noise, abnormal wear, overload, and/or failure of the drive.
Which gears are free from axial thrust?
In order to eliminate this thrust, double helical gears (herringbone gears) are used. It is equal to two single helical gears, in which two equal and opposite thrust are provided on each gear and the resulting axial thrust is zero.
What causes a diff to whine?
The most common sound of a failed differential is a whining noise. This is often due to poor lubrication within the differential, meaning there is a good chance that the differential fluid is leaking. If you spot a reddish fluid under the differential, there is certainly a leak.
Can you over tighten pinion nut?
If you overtighten the pinion nut, you need to remove the pinion and replace the crush sleeve.
Can I tighten my pinion nut?
Use a pipe wrench to hold the yoke while tightening the pinion nut. The advantage is that you can wedge the handle of the pipe wrench against the floor, frame, leaf spring, etc while tightening the nut.
