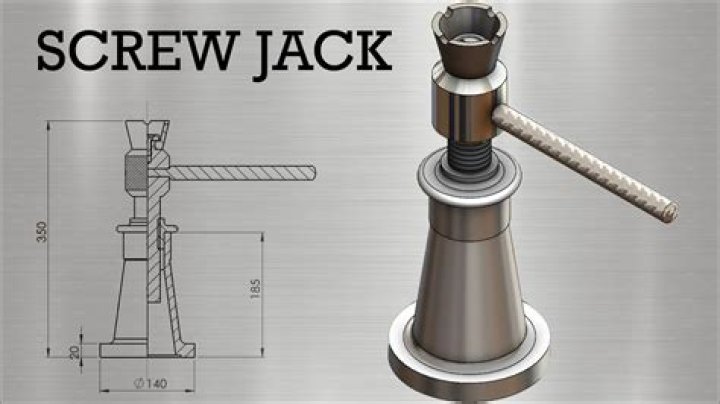

A jackscrew, or screw jack, is a type of jack that is operated by turning a leadscrew. It is commonly used to lift moderately and heavy weights, such as vehicles; to raise and lower the horizontal stabilizers of aircraft; and as adjustable supports for heavy loads, such as the foundations of houses.

How does a jack screw work?

For rotating screw jacks the lead screw is fixed to the worm gear and they rotate at the same speed. As the worm gear turns, the friction forces on the screw thread act to turn the nut also. The greater the load on the screw jack unit, the greater the tendency of the nut to turn.

How does a screw jack make work easier?

Torque = perpendicular distance of the line of action of force from the axis of rotation × magnitude of force. In screw jack perpendicular distance is more. Hence less force applied makes the work easier......

What is a lift screw?

Jackscrews (also referred to as jack screws or screw jacks) are among several different kinds of linear motion actuators most often used for lifting or moving loads. ... Sometimes instead of a plate there is an attached nut or nut flange so that the screw is stationary and only the nut assembly moves.

What is a jackscrew used for?

A jackscrew, or screw jack, is a type of jack that is operated by turning a leadscrew. It is commonly used to lift moderately and heavy weights, such as vehicles; to raise and lower the horizontal stabilizers of aircraft; and as adjustable supports for heavy loads, such as the foundations of houses.

What is JACKSCREW and how it works - Translating Screw Jack and Rotating Screw Jack

38 related questions found

What is collar friction in power screw?

A thrust bearing having a suitably formed face or faces that resist the axial pressure of one or more collars on a rotating shaft.

What is a simple screw jack?

A screw jack is a simple machine. It is used to lift cars or heavy automobiles. It consists of a long screw rod which passes through a threaded block B and a handle . The distance between two consecutive thread is known as pitch of screw.

What is self-locking of screw jack?

Self-locking means that lead screw nuts and lead screws cannot be moved without external force application. It has to do with the pitch and coefficient of friction. Self-locking allows the user to eliminate a costly brake in many applications. Single-start trapezoidal lead screw drives are self-locking.

What is a screw mechanism?

A screw is a mechanism that converts rotational motion to linear motion, and a torque (rotational force) to a linear force. It is one of the six classical simple machines. The most common form consists of a cylindrical shaft with helical grooves or ridges called threads around the outside.

Can a screw lift an object?

A screw is a special kind of inclined plane. It's basically an inclined plane wrapped around a pole. Screws can be used to lift things or to hold them together.

What two simple machines make up a screw?

So modern screws with their screwdrivers are a combination of two simple machines – the inclined plane and the lever.

How do self locking screws work?

Self locking nut is a nut which has a nylon inserted on the top of the nut. When this nut is turned on the threads of a bolt, the nylon deforms itself around the screw threads as such prevents the nut to rotate in the opposite direction. ... These are the working principle of a self locking nut.

How can you tell if a screw is self locking?

Power screws can be self-locking when the coefficient of friction is high or the lead is small, so that π µ_t d_m > L or, equivalently, µ_f > tan λ. When this condition is not met, the screw will self-lower or overhaul unless an opposing torque is applied.

How do you use self locking screws?

Position the screw straight in line with the hole and turn it in, one or two turns, by hand. This allows the screw to be left in the hole as you pick up your screwdriver or drill machine. Using firm short movements, screw the self-tapping screw in place using a Phillips or flat head screwdriver or drill bit.

How many types of screw jacks are there?

There are 3 main types of screw jacks: machine/worm gear screw jacks, ball screw jacks, and bevel gear jacks.

What type of thread is used for screw jack?

Answer: Square thread is used in screw Jack. Explanation :- In heavy-duty applications, such as screw jacks, a square thread or buttress thread is used, because it has the lowest friction and wear.

How do you find the pitch of a screw jack?

The Velocity ratio of a simple screw jack formula is defined as the ratio of two times π multiplied to length of lever arm to the pitch of the screw and is represented as vratio = (2*pi*l)/p or velocity_ratio = (2*pi*Length of lever arm)/Pitch.

Why is collar used in power screw?

Power Screw with Collar

In most of power screw applications (load lifting); a collar is to be designed. The presence of collar increases the friction torque. A thrust collar bearing must be employed between the rotating and stationary members in order to carry the axial component.

Which force is applied on power screw?

Screws that modify force and motion are known as power screws. A screw jack converts torque (turning moment) to thrust. The thrust (usually to lift a heavy object) is created by turning the screw in a stationary nut.

Why are V threads not used in power screws?

Power screws are classified by the geometry of their thread. V-threads are less suitable for leadscrews than others such as Acme because they have more friction between the threads. ... Therefore, in most commercial and industrial use, V-threads are avoided for leadscrew use.

When the self locking of the screw will occur?

Explanation: A screw will be self locking if the friction angle is greater than helix angle or coefficient of friction is greater than tangent of helix angle i.e. μ or tan φ > tan α. Explanation: Efficiency of self locking screws is less than 1/2 or 50%.

When would you use a locking screw?

Accepted indications for the use of locking plate fixation include: 1) fractures of osteoporotic bone; 2) highly comminuted fractures, especially those involving diaphyseal and metaphyseal bone; and 3) metaphyseal and intra-articular fractures such as proximal humerus and distal radius fractures.

What is the condition for self locking?

Self-locking: When ϕ is greater than or equal to α, a positive torque is required to lower the load. Under this condition, the load will not turn the screw and will not descend on its own unless an effort P is applied.

What are self-locking threads?

Self-Lock™ is an engineered wedge ramp at the root of the internal thread that only engages when the joint starts to build clamp load during tightening.

How do machines work?

Machines simply transmit mechanical work from one part of a device to another part. A machine produces force and controls the direction and the motion of force, but it cannot create energy. A machine's ability to do work is measured by two factors. These are (1) mechanical advantage and (2) efficiency.
