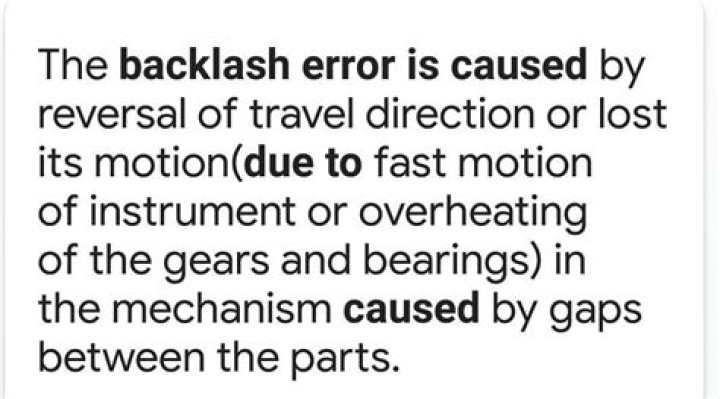

Backlash error is the error in the motion which occurs while changing the direction of gears. It is caused when there is a gap between the trailing face of the driving tooth and the leading face of the tooth behind the driven gear. This can be avoided by turning the gear in the same direction.

What is backlash error?

Backlash error is the error that occurs while we are changing the direction of gears. ... It can be avoided by turning the gear slowly in the same direction. Backlash error can also be defined as the clearance or lost motion in a mechanism caused by gaps between the parts of the gear.

What is backlash error Why is it caused How can it be reduced?

This phenomenon is called backlash error. To reduce the backlash error, the distance between the centre of a pair of gear has to be minimised to push the gear into a mesh more tighter. This eliminates the backlash error.

How do you prevent backlash error?

To avoid the backlash error, while taking the measurements the screw should be rotated in one direction only. If the direction of rotation of the screw needs to be changed, then it should be stopped for a while and then rotated in the reverse direction.

What is the cause of backlash error in a screw gauge?

Backlash error in a screw gauge happen When we try to rotate the screw very fast to measure a reading then there is some slipping between the different screws instead of rotation, which gives an incorrect reading, to avoid this we should rotate the screw slowly in only one direction.

Class 9: Backlash error in srewgauge

18 related questions found

What is backlash in measurement?

Gear backlash is the play between teeth measured at the pitch circle. It is the distance between the involutes of the mating gear teeth, as illustrated in Figure 39.17. Figure 39.17.

What are the harmful effects of backlash?

At low power outputs, backlash results in inaccurate calculation from the small errors introduced at each change of direction; at large power outputs backlash sends shocks through the whole system and can damage teeth and other components.

What are the causes of zero error?

Zero errors are caused by faulty equipment that doesn't reset to zero properly. Check before you start measuring that the measuring instruments read zero for zero input. A zero error would affect every reading you take.

How can we prevent backlash error in Travelling microscope?

4. To avoid any backlash error, the micrometer screw of the travelling microscope should be moved very slowly and be moved in one direction while taking observa- tions.

What is backlash error how do you reduce it class 11?

Reduction of backlash error:

-Backlash in screw gauges can be avoided by carefully spinning the screw in one direction. -Backlash error occurs when the tip of the screw does not start moving immediately after reversing the direction of rotation of the thimble owing to wear and tear of the screw thread.

What is backlash error class 11?

A backlash error is an error in the observation. caused due to wear and tear of threads of the screw observed. It is caused while reversing the direction of rotation.

What is screw gauge principle?

The screw gauge works on the principle of movement. When the screw is rotated, there is a linear motion on the main scale of the screw gauge. This measurement is used to calculate small lengths. The distance moved by the spindle per rotation is known as pitch.

What is backlash error in newtons ring?

The space for the play of screw increases with the use or due to wear and tear, such that when the screw is moved by rotating it in some direction, it slips in the nut and does not cover any linear distance for some rotation of the screw head. The error due to this is known as backlash error.

How does parallax error occur?

Parallax error occurs when the measurement of an object's length is more or less than the true length because of your eye being positioned at an angle to the measurement markings. ... A wider edge allows for a larger parallax error because the object could be higher or lower with respect to the true measurement marking.

Where does the term backlash come from?

backlash (n.)

1815, of machinery, "reaction of wheels on each other produced by an inconstant load," from back (adj.) + lash (n.) "a blow, stroke." In metaphoric sense, it is attested from 1929.

Which instrument will not have backlash error?

Correct Answer is: b Spherometer and screw gaugeBacklash error occurs only in instruments using screws.

What is backlash error in Travelling microscope?

Back lash error is when you translate scale by rotating screw. The thread of the screw on stage does not fill gap perfectly. So while moving in one direction if you suddenly then you can see that screw will rotate without moving the system. This will cause back lash.

What is meant by backlash error in Travelling microscope?

Back lash error occurs when an individual translates the scale by rotating the screw. The thread of the screw on the stage does not fill the gap perfectly. So, while moving in one direction, the person can see that the screw will rotate without moving the system, which will cause back lash.

How can we remove parallax from microscope?

For the vertical scale of the microscope, determine the vernier constant. Mark point P on the base of the microscope using black ink. To avoid the parallax between the cross-wires and the mark P, make the microscope vertical and focus on P. Let R₁ be the vernier scale and main scale reading on the vertical scale.

What is parallax error?

The error/displacement caused in in the apparent position of the object due to the viewing angle that is other than the angle that is perpendicular to the object.

What are the 3 types of errors in science?

Three general types of errors occur in lab measurements: random error, systematic error, and gross errors. Random (or indeterminate) errors are caused by uncontrollable fluctuations in variables that affect experimental results.

What is Parallax and zero error?

Zero Error is due to non zero reading. When the actual reading should be zero. This error is usually due to the fact that the pointer of the instrument doesn't return to zero when it is not being used. Parallax error is the random.error due to incorrect positioning of the eye when taking the reading of a measurement.

How do you reduce backlash in gears?

The simplest and most common way to reduce backlash in a pair of gears is to shorten the distance between their centers. This moves the gears into a tighter mesh with low or even zero clearance between teeth. It eliminates the effect of variations in center distance, tooth dimensions, and bearing eccentricities.

What is law of gearing?

Law of gearing states that the common normal at the point of contact between a pair of teeth must always pass through the pitch point for all positions of mating gear. ... This is a must condition for the two gears to perform properly.

What is backlash and interference?

This leads to overlapping of involute portion of teeth with the non-involute portion of the teeth. 2. Interference can be removed by under cutting. ... Explanation: Backlash is the amount by which tooth space exceeds the engaging tooth thickness.
