Air eliminators work upstream of the meter to ensure no air is metered through the meter element. ... Standard air/vapor eliminators use a float to detect air in conjunction with an air check valve or differential valve and shuts off flow while air/vapor is vented.

What is the use of air eliminator?

An air eliminator is a segment of piping which attaches to a main pipe to trap and release air, fitted ahead of flow meters in a pipeline so that air will not be measured and a more accurate volumetric reading can therefore be taken.

How does a vapor eliminator work?

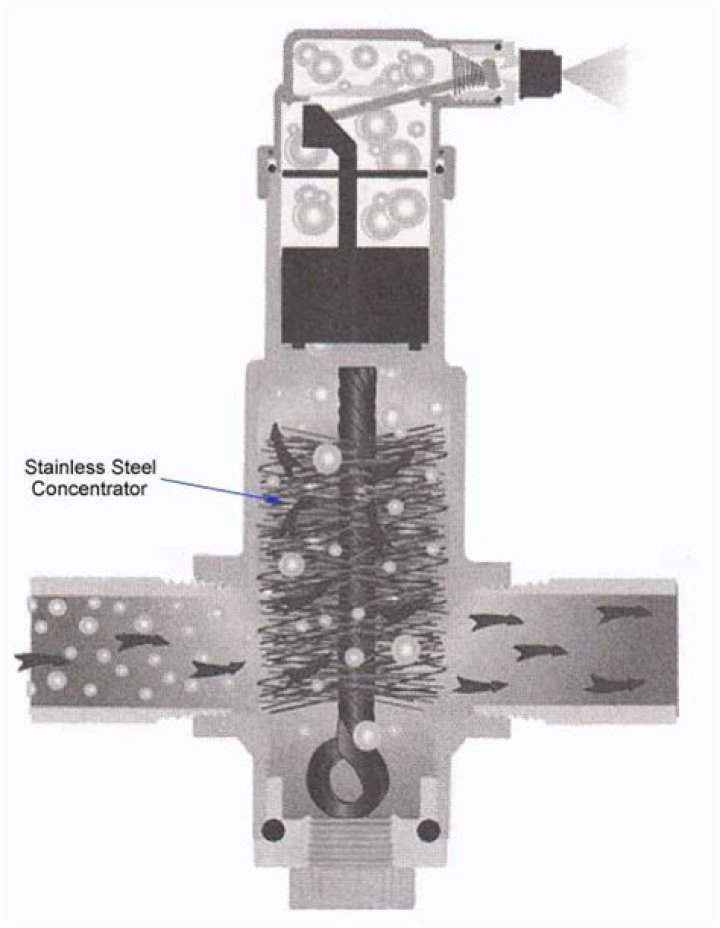

aIr and vaPor elIMInaTIon Liquid Controls mechanical air and vapor eliminators eliminate air (or vapor) instantly and continuously as it enters the meter system. Because air and vapor are lighter and less dense than liquid, they are naturally pushed up above the product flow.

What is a air eliminator?

The air eliminator is a reliable, automatic air-relief valve which is installed before the inlet for a pump, where the removal of air is required. This prevents liquid from leaving the pipeline while removing entrained air and preventing that air from being drawn back into the pipeline from the atmosphere.

How does a caleffi work?

Here's how they work: inside the cap are a number of very thin, washer-shaped discs made of a cellulose fiber - a natural plant-based material that expands by 50% immediately when wet. This expansion seals the vent opening. Once the discs dry out, they shrink down again to allow air passage.

Air Separator

35 related questions found

Where do you put an air separator?

Vortex Air Separators should be installed at the highest temperature and the lowest pressure points in the system. Where this is not possible, the best location is at the point of highest temperature. Ideally, a separator should be located on the outlet side of the boiler, and the suction side of the pump.

How do you pipe a Monoflow system?

Monoflow tees are used to divert some water from the main loop into each radiator. Use one monoflow tee on the return if the radiator(s) are located above the main loop; use two monoflow tees if the radiators are installed below the main loop. Place the tees in the main loop to each radiator at least 12" apart.

Are air separators necessary?

Air elimination is more important in a chilled-water system than in a hot-water system, because cold water holds more air. Without an air-separator, the constant air-water mixture being pumped will dramatically decrease heat transfer capabilities because air acts as an insulator.

What flow rate is best for air removal?

For good performance, the flow velocity entering an air scoop should be no higher than 4 feet per second.

How does air get into my heating system?

Air can build up in radiators as a result of installing the pump above the supply tank. There can be an accumulation of hydrogen in the system as a result of rust within piping or the development of too much sludge. Leaks are often a cause for air build-up. This can happen if you frequently re-pressurise the boiler.

How does an air bleeder valve work?

HOW DO THEY WORK? Automatic air release valves are installed at the highest points in a pipeline where air naturally collects. Air bubbles enter the valve and displace the liquid inside, lowering the liquid level. When the level drops to where it no longer buoys the float, the float drops.

Do you bleed a radiator when it is on or off?

Turn off your heating. You can't bleed a radiator when the heating is on, as it may be too hot to touch. You could also get hot water spraying out of the radiator. Use your radiator key to turn the valve at the top of the radiator.

How does a one pipe heating system work?

In a one-pipe heating system all radiators are connected to the same pipe, which acts as both flow pipe and return pipe. This means that the temperature decreases along the pipe. For this reason, the radiators along the pipe line should increase in size correspondingly to provide the same heat output.

How does a one pipe system work?

A one pipe system sends the pumped water to each radiator in turn, and returns the water from the last radiator on the run. ... This inevitably lead to a very unbalanced system, where the radiators nearest the boiler would be extremely hot and the final radiators on the system tepid at best.

Do you need diverter tees on a two pipe direct return?

A: It depends on how much pressure drop you have to apply along the main to get the flow you need through the branch. As a rule of thumb, you should use one diverter tee if the radiator is above the main (using it as the return tee) and two diverter tees if the radiator is below the main.

What are 2 types of air separators?

• Tangential Air Separators.
• In-line Air Separators.
• Air & Dirt Separators.

What is the principle of air separator?

Air separators eliminate air quickly and efficiently from closed loop heating and cooling systems. Water enters and exits through unique tangential nozzle connections, which promote a low-velocity swirling vortex effect in the center of the unit.

How does an air and dirt separator work?

Air and dirt separators remove both air bubbles and dirt particles in one unit. This combination of two functions in a single unit allows savings in time and cost. ... An excess of air in your system can lead to noise and also to oxidisation, which in turn can lead to the build-up of contaminated particles.

Should automatic exhaust vent be left open?

Auto air vents did most for you. When air free tighten up. When they are left open any nitrogen accumulating because of corrosion is vented away, giving the impression all is fine, especially in a vented system. If nitrogen is being produced it will make parts of the system cold which raises alarm bells.

What is the function of air release valve?

Air Release Valves are used to automatically vent the air that can become trapped in any pipeline conveying fluid. They should be placed at strategic high points along the pipeline, where trapped air can accumulate.
