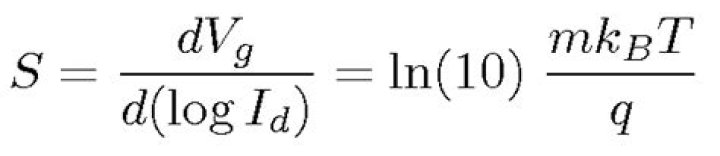

The general expression for subthreshold slope (swing) is S= (d(log10Ids)/dVgs)-1. Or from the above plot, at very low Vgs, take the derivative of log values of Ids with respect to Vgs and then invert the resulted value.

What is subthreshold slope factor?

The subthreshold slope is a feature of a MOSFET's current–voltage characteristic. In the subthreshold region, the drain current behaviour – though being controlled by the gate terminal – is similar to the exponentially decreasing current of a forward biased diode. ... Its slope is the subthreshold slope.

What is meant by subthreshold swing?

The subthreshold swing is defined as the gate voltage required. to change the drain current by one order of magnitude, one. decade. In the MOSFET, the subthreshold swing is limited. to (kT/q) ln10 or 60 mV/dec at room temperature, and with.

Why subthreshold swing is important?

The subthreshold swing is an important parameter in modeling the weak inversion regime, especially for high-gain analog applications, imaging circuits, and low-voltage applications.

What is subthreshold region in MOSFET?

Subthreshold conduction or subthreshold leakage or subthreshold drain current is the current between the source and drain of a MOSFET when the transistor is in subthreshold region, or weak-inversion region, that is, for gate-to-source voltages below the threshold voltage.

6.3 Subthreshold swing

20 related questions found

How do you extract subthreshold swings?

The general expression for subthreshold slope (swing) is S= (d(log10Ids)/dVgs)-1. Or from the above plot, at very low Vgs, take the derivative of log values of Ids with respect to Vgs and then invert the resulted value.

What does subthreshold mean?

: inadequate to produce a response subthreshold dosage a subthreshold stimulus.

What is the transconductance of a Mosfet?

Similarly, in field effect transistors, and MOSFETs in particular, transconductance is the change in the drain current divided by the small change in the gate/source voltage with a constant drain/source voltage.

How do you reduce subthreshold leakage current in NMOS?

Unlike gate leakage, subthreshold leakage cannot be solved by MOS structures nor by introducing new material. One of the feasible solutions is by combinational use of Low- Vt transistors for its high-speed capability and High- Vt transistors for very small leakage current.

Why are MOSFETs intentionally strained?

When the MOSFET is strained, the energy bands split, with the "out-of-plane" ellipsoids having lower energy. The electrons move from the high energy "in-plane" ellipsoids (with the poor effective mass) to the low energy "out-of-plane" ellipsoids (with the good effective mass).

What is Suprathreshold?

Medical Definition of suprathreshold

: of sufficient strength or quantity to produce a perceptible physiological effect suprathreshold stimuli.

What is weak inversion in Mosfet?

The weak inversion current (also known as subthreshold current) is carried through the channel when the gate voltage is below threshold, and it flows between the source and drain of a MOS transistor. ... Only the subthreshold voltage is the dominant component of the leakage current for low-voltage, low-power circuits.

What is body effect in Mosfet?

Body effect refers to the change in the transistor threshold voltage (VT) resulting from a voltage difference between the transistor source and body.

What is strong inversion in Mosfet?

At strong inversion, the electron concentration at the surface becomes equal to NA. This happens when φs = 2φB and the applied potential for this 0.72 V . Using equation 6, the depletion width at strong inversion (wm) is 307 nm.

What is the ideal sub threshold slope at room temperature?

The subthreshold slope

For V_T ~26 mV (room temperature) and the ideal case of n = 1, the ideal subthreshold slope for MOSFETs is ~60mV/decade.

How does short channel effect degrade sub threshold swing?

The increase in the short-channel effects results in the increase in the subthreshold swing, S , of the device as demonstrated in Fig. ... It is also observed from the figure that, for a fixed channel length (below 60 nm), the subthreshold swing also increases with the increase in the channel thickness.

How do you calculate leakage current?

The leakage current can be estimated as follows from the insulation resistance specification value and the rated voltage of the item using the formula I = V/R.

How is leakage power calculated?

The leakage power is determined when the transistors are kept in the off sate. So, you need only to control the transistors in the off state measure the leaksge current and multiply it by the the VDD that is the leakage power =VDD Il where Il is the leakage current of the circuit.

What causes subthreshold current?

Subthreshold leakage current is mainly due to drain-induced barrier lowering or DIBL. ... The source is then able to inject charge carriers into the surface of the channel resulting in subthreshold leakage current. DIBL is pronounced in high drain voltages and short channel devices.

How do you calculate the transconductance of a MOSFET?

The SI unit for transresistance is simply the ohm, as in resistance. Similarly, in field effect transistors, and MOSFETs in particular, transconductance is the change in the drain current divided by the small change in the gate/source voltage with a constant drain/source voltage.

How do you find the transconductance of a MOSFET?

Measuring transconductance

1. Sweep the gate voltage (V_GS) over the desired range, while maintaining a constant drain/source voltage (V_DS)
2. Measure the drain current (I_D) at each increment step of V_GS.
3. Calculate transconductance (g_m) by dividing the small changes in the current I_D by the small changes in V_GS.

What is the formula of transconductance?

It is used in bipolar junction transistors in order to measure its sensitivity. Transconductance shows how sensitive collected current IC is with respect to the base emitter voltage VBE. gm=ICVT, where IC is the DC collector current at the Q-point and VT is the thermal voltage.

What is an example of a subthreshold?

Another Analogy: If something tickles your nose but it's not enough to make you sneeze, that's a subthreshold stimulus. If something tickles your nose just enough to make you sneeze once, that's a threshold stimulus.

What are subthreshold disorders?

These currently "subthreshold" conditions are Mixed Anxiety Depression, Binge Eating, Psychosis Risk, Hypersexuality, and Minor Neurocognitive.

What is subthreshold PTSD?

Subthreshold PTSD refers to the experiencing of some post-traumatic stress disorder (PTSD) symptoms after a traumatic event, but not quite enough to meet criteria for a PTSD diagnosis. Subthreshold PTSD can be associated with distress and impairment consistent with what is seen among people with a PTSD diagnosis.
