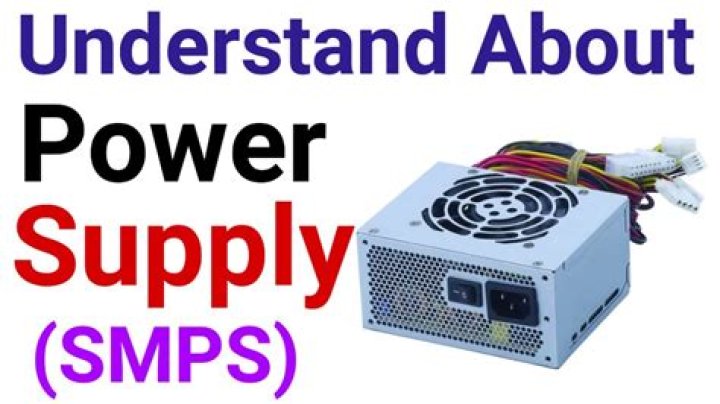

A power supply unit converts mains AC to low-voltage regulated DC power for the internal components of a computer. Modern personal computers universally use switched-mode power supplies. Some power supplies have a manual switch for selecting input voltage, while others automatically adapt to the mains voltage.

What is the formula for power supply?

Use the formula for power: Power = Voltage x Current, or P = VI. If you are trying to calculate the minimum load and you happen to only know the power and voltage ratings of your power supply, you can use the formula P = V²/R, which can become R = V²/P.

What is the example of power supply unit?

The source power may come from the electric power grid, such as an electrical outlet, energy storage devices such as batteries or fuel cells, generators or alternators, solar power converters, or another power supply.

What are the 4 parts in a power supply?

It is basically consisting of the following elements: transformer, rectifier, filter and regulator circuits. Power supply units (PSU) are used in computers, amateur radio transmitters and receivers, and all other electronic equipment that use DC voltage as an input.

What is the rule of power supply unit?

A power supply with regulation provides an output that remains constant irrespective of variations in the input mains voltage. A typical power supply unit consists of several blocks depending on the design and stability required. A simple linear supply will have a transformer, rectifier, filter and a regulator.

Beginners Guide to Power Supplies... How to understand the ratings

26 related questions found

What is a power supply used for?

Electrical outlets deliver alternating current, or AC, power. Most electrical devices require direct current to function. A power supply converts the AC power into DC. During this conversion, the output may waver, occasionally requiring regulation.

What are the 3 types of power supply?

There are three major kinds of power supplies: unregulated (also called brute force), linear regulated, and switching. The fourth type of power supply circuit called the ripple-regulated, is a hybrid between the “brute force” and “switching” designs, and merits a subsection to itself.

What are the parts of power supply unit?

Core Components of a Power Supply

• The Transformer. The transformer is used to step the AC voltage up and down as well as provide isolation between the electronic system and the AC power. ...
• The Rectifier. The rectifier is responsible for changing AC power to pulsating DC power. ...
• The Filter. ...
• The Regulator Circuits.

What is PSU section?

The power supply unit is the part of the hardware that is used to convert the power provided from the outlet into usable power to many parts inside an electrical device. Every energy supply must drive its load, which is connected to it. ... There are two types of power supplies existed, AC and DC power supply.

What is the main power supply?

The purpose of a mains power supply is to convert the power delivered to its input by the sinusoidally alternating mains electricity supply into power available at its output in the form of a smooth and constant direct voltage. This is usually achieved in a number of stages as illustrated in Figure 13.4.

What do you mean by power supply?

: a device providing power to electronic equipment and sometimes designated A, B, or C according to its function of heating vacuum tube cathodes, causing a flow of electron current in plate circuits, or applying a direct voltage in grid circuits.

What are the units of power?

Power (P) is the rate at which energy is transferred or converted. Thus, power equals work divided by time (P = W / t). The SI unit of power is the watt (W), in honor of Scottish inventor James Watt (1736 - 1819).

What is DC power supply unit?

A DC power supply, also known as a bench power supply, is a type of power supply that gives direct current (DC) voltage to power a device. A DC power supply management subsystem can use AC, DC, battery, or ultralow voltage as inputs.

How do you calculate joules?

In equation form: work (joules) = force (newtons) x distance (meters), where a joule is the unit of work, as defined in the following paragraph. In practical terms, even a small force can do a lot of work if it is exerted over a long distance.

What is current unit?

Unit of electric current: ampere (A)

The ampere, symbol A, is the SI unit of electric current. It is defined by taking the fixed numerical value of the elementary charge e to be 1.602 176 634 ×10⁻¹⁹ when expressed in the unit C, which is equal to A s, where the second is defined in terms of ∆ν_Cs.

What are the 2 equations for power?

Power Formula 2 – Mechanical power equation: Power P = E ⁄ t where power P is in watts, Power P = work / time (W ⁄ t). Energy E is in joules, and time t is in seconds.

How does ATX power supply work?

ATX power supplies are turned on and off by a signal from the motherboard. They also provide a signal to the motherboard to indicate when the DC voltages are in spec, so that the computer is able to safely power up and boot. The most recent ATX PSU standard is version 2.31 as of mid-2008.

What is modular power supply?

Simply put, a modular PSU allows the builder to attach (or detach) cables as they're needed. ... A modular PSU allows the builder to only use the cables that are needed for the build, which can significantly reduce cable clutter in the case. This can sometimes improve airflow in addition to aesthetics.

What is a DC power supply used for?

The main job of an AC/DC power supply is to transform the alternating current (AC) into a stable direct current (DC) voltage, which can then be used to power different electrical devices. Alternating current is used to transport electric power all across the electric grid, from generators to end users.

How do you read a power supply?

On the label you will see the following; 3.3v, 5v, 12v (there may be more than one 12v), 5vSB (stand-by), -12v, and for the older models -5v, and under each, the associated amperage. A good PSU will even show the sustained maximum allowed amperages across all voltages (maximum wattage PSU can deliver).

What is AC and DC?

Alternating Current (AC) is a type of electrical current, in which the direction of the flow of electrons switches back and forth at regular intervals or cycles. ... Direct current (DC) is electrical current which flows consistently in one direction.

How does power supply work?

A power supply takes the AC from the wall outlet, converts it to unregulated DC, and reduces the voltage using an input power transformer, typically stepping it down to the voltage required by the load. For safety reasons, the transformer also separates the output power supply from the mains input.

What is electric power supply system?

An electric power system is defined as a network of electrical components used to supply (generate), transmit, and consume electric power. ... This is achieved by transporting electrical power from generation buses to distribution substations through transmission buses interconnected by transmission lines.
