This process leaves behind free holes that are able to propagate through the valence band, where they can increase the conductivity. Therefore, as doping increases, the conductivity of a p-type semiconductor also increases (more acceptor states means more free holes that can permeate the valence band).

What happens to Fermi level when doping is increased?

This shift is proportional to the log of doping density. So, more the doping, more the fermi level will move away from the intrinsic fermi level(centre). While, decreasing doping moves back the fermi level towards the centre.

How does doping increase the conductivity of semiconductor?

In semiconductors doping can be done with either electron rich or electron deficient impurities. ... When silicon is doped with electron rich impurities, the extra electrons become delocalized. The electrical conductivity is increased by negatively charged electron and hence it is called n-type semiconductor.

How does Fermi level change with increase in temperature and increase in doping concentration in extrinsic semiconductor?

As temperature increases more and more electrons shift to the conduction band leaving behind equal number of holes in the valence band. These electron hole pairs are intrinsic carriers. ... To maintain the balance of the carrier density on both sides the fermi level EFn gradually shifts downwards.

Does doping change Fermi level?

the Fermi level is shifted due to doping: Upwards in case of n-type and downwards in case of p-type. Why is this? The Fermi level is the level where the probability that an electron occupies the state is 0.5, e.g. where the Fermi energy is located (correct?).

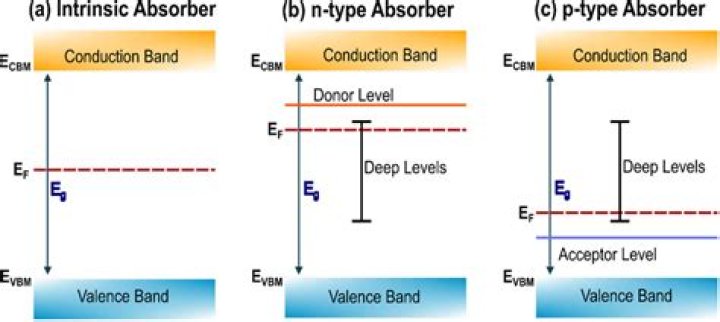

Effect of Doping on Fermi Energy Level in Extrinsic Semiconductor (P & N type Semiconductor)

38 related questions found

How does the doping in a semiconductor affect the Fermi level?

The type of doping or dopant, whether it will render an n-type or p-type, and concentration of dopant will affect the Fermi level, and therefore the work function. ... Higher concentration of a particular type of dopant will move the Fermi level closer to either the CBM or VBM, depending on the semiconductivity.

What is Fermi level in extrinsic semiconductor?

In extrinsic semiconductor, the number of electrons in the conduction band and the number of holes in the valence band are not equal. Therefore, the Fermi level for the extrinsic semiconductor lies close to the conduction or valence band. ...

What will happen to an extrinsic semiconductor if its temperature is increased?

As the temperature starts increasing toward the Extrinsic Region, the effect of ionized impurity scattering slowly fades away, increasing the electron mobility, and the amount of electrons being promoted from the donor level to the conduction band increases even more.

What are extrinsic and intrinsic semiconductor?

Intrinsic semiconductors are composed of only one kind of material. Extrinsic semiconductors are made of intrinsic semiconductors that have had other substances added to them to alter their properties (they have been doped with another element).

When increase the temperature of extrinsic N-type semiconductor after a certain temperature it behave like a?

Resistivity first decreases with increase in temperature(0K-300K) and then increases with increase in temperature(300K-Curie Temperature). After curie temperature, extrinsic semiconductor behaves as a intrinsic semiconductor and at temperature greater than curie temperature, resistivity again starts decreasing.

What is meant by extrinsic semiconductor?

An extrinsic semiconductor is one that has been doped; during manufacture of the semiconductor crystal a trace element or chemical called a doping agent has been incorporated chemically into the crystal, for the purpose of giving it different electrical properties than the pure semiconductor crystal, which is called an ...

Which materials increase the conductivity of a semiconductor by increasing the number of holes?

P-type materials are created when semiconductor materials from group IV are doped with group III atoms. N-type materials increase the conductivity of a semiconductor by increasing the number of available electrons; P-type materials increase conductivity by increasing the number of holes present.

What is the effect of doping of semiconductor with small impurity on its resistivity?

Taken a doped semiconductor at high impurity concentration such that the impurity states are extended in nature, as we lower the temperature, resistivity show weak temperature dependence i.e. very small increase of resistivity with decrease in temperature.

What happen to concentration of majority carriers and the Fermi level when temperature of an extrinsic semiconductor is increased?

If the temperature of an N type semiconductor is increased, then since all the donor atoms have already donated their free electrons at room temperature, the additional thermal energy only serves to increase the number of thermally generated carriers. As a result, the concentration of minority carriers increases.

What is the position of Fermi level in intrinsic semiconductor?

In intrinsic semiconductor, the number of holes in valence band is equal to the number of electrons in the conduction band. Hence, the probability of occupation of energy levels in conduction band and valence band are equal. Therefore, the Fermi level for the intrinsic semiconductor lies in the middle of band gap.

Why do we prefer extrinsic semiconductors than intrinsic semiconductor?

The number of free charge carriers is less hence it has higher resistance to conduction of charges. Whereas an extrinsic semiconductor has greater conductivity as it has a number of free charge carriers. Hence external semiconductors are preferred for practical manufacturing of semiconductor components and devices.

What is an extrinsic semiconductor Class 12?

Extrinsic semiconductors are semiconductors that are doped with specific impurities. ... While adding impurities, a small amount of suitable impurity is added to pure material, increasing its conductivity by many times. Extrinsic semiconductors are also called impurity semiconductors or doped semiconductors.

What are extrinsic semiconductors mention its types and explain the mechanism of conduction in each?

Si and Ge have four valence electrons each. In their crystals, each atom forms four covalent bonds. On the other hand, P and As contain five valence electrons each. ... p-type semiconductor: The semiconductor whose increased in conductivity is a result of electron hole is called a p-type semiconductor.

Why at high temperatures extrinsic semiconductors become intrinsic Because?

At very high temperatures the extrinsic semi conductors become intrinsic because. drive in diffusion of dopants and carriers. band to band transition dominants over impurity ionization.

What is the impurity level in extrinsic semiconductor?

The impurity level in an extrinsic semiconductor is about of pure semiconductor.

What are extrinsic semiconductors and describe n type and p type semiconductors?

Solution: Extrinsic Semiconductors are pure semiconductors which conduct even at room temperature. This is achieved by adding impurities to the pure semiconductor. ... Solution: In n-type semiconductors, electrons are the major charge carriers. In p-type semiconductors, holes are the major charge carriers.

What is the position of Fermi level in intrinsic and extrinsic semiconductor?

For an intrinsic semiconductor, the electron-carrier concentration is equal to the hole-carrier concentration. Therefore, the Fermi level in an intrinsic semiconductor lies in the middle of the forbidden gap.

What is the effect of increasing impurity concentration on Fermi level in p-type semiconductor?

⦁ IN p-TYPE SEMICONDUCTOR. ⦁ With the increase in the impurity concentration the impurity atoms interact. As a result the acceptor level splits into acceptor band which gradually widens with doping level increment. ⦁ Finally the acceptor level enters the valence band.

When temperature increases intrinsic concentration increases which results in increase of?

Alternatively, increasing the temperature makes it more likely that an electron will be excited into the conduction band, which will increase the intrinsic carrier concentration. This translates directly to solar cell efficiency. Intrinsic carrier concentration in a semiconductor at two temperatures.

What is the effect of doping in semiconductor?

Because the band gap is so small for semiconductors, doping with small amounts of impurities can dramatically increase the conductivity of the material. Doping, therefore, allows scientists to exploit the properties of sets of elements referred to as “dopants” in order to modulate the conductivity of a semiconductor.
