Differential pressure is essentially the difference in pressure between two given points. It is a type of pressure measured within different industries using differential pressure sensors. Gauge pressure refers to the difference between a measured point and the atmosphere.

What is differential pressure formula?

Firstly, differential pressure (DP or ∆P) is the difference between any two applied pressures. ... Differential pressure is calculated by subtracting one of these values from the other. If Pipe A flows at 100 psi and Pipe B flows at 30 psi, the differential pressure would be 70 psi.

What is differential pressure in physics?

[‚dif·ə′ren·chəl ′presh·ər] (physics) The difference in pressure between two points of a system, such as between the well bottom and wellhead or between the two sides of an orifice.

What is differential pressure setting?

A differential pressure switch is a device which utilizes a differential air pressure to actuate an electric switch at a pre-set actuation point. This may be the difference between two positive or two negative pressures, one of each, or a positive and atmospheric or a negative and atmospheric pressure.

What is differential pressure in pharma?

Differential pressure refers to the difference in air pressure from one location to another within a system. In cleanrooms, maintaining the right amount of differential pressure—either positive or negative—is essential to preventing contamination.

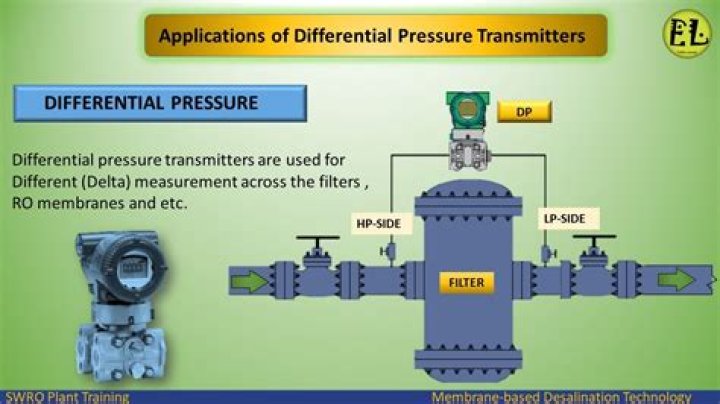

Differential Pressure Transmitter Explained

40 related questions found

What is differential pressure in HVAC?

Differential pressure: the pressure between two points. ... Gauge pressure: the pressure between a measured point and the atmosphere. Absolute pressure: the combined pressure of the atmosphere and the measured point.

What is differential pressure flow?

The differential pressure flow meter measures the volume flow in gases, liquids and steam. They are particularly used in situations where high pressure, high temperature or a large diameter play a role. They are mainly found in the chemical, oil, gas and power industries.

What does a differential pressure sensor do?

A differential pressure sensor measures the difference in pressure at two points and provides a comparative measurement between the two.

What is differential pressure in valve?

Specific to control valves, it is the difference between the inlet pressure and outlet pressure. This pressure differential or Delta P is the inlet minus the outlet pressure. ... Control valve flow is a function of both the pressure drop across the valve and the valve travel.

What is differential pressure in pumps?

Differential pressure is the measured difference between two pressures, such as between the discharge and suction nozzles of a pump.

How do you calculate differential pressure flow?

To find the velocity of the fluid flow, multiply the differential pressure by two and divide this number by the density of the flowing material.

Why do we use differential pressure?

Differential pressure measurement is largely used in domestic and industrial applications. It is often the basis of other measurements such as flow, level, density, viscosity and even temperature. The most common being level and flow. ... Differential pressure flow meters have a primary and a secondary element.

How does a differential pressure flow meter work?

Differential Pressure flow meters measure the velocity of fluids by reading the pressure loss across a pipe constriction. ... According to Bernoulli's principle, the pressure drop across the constriction is proportional to the square of the flow rate. The higher the pressure drop, the higher the flow rate.

What is the relationship between differential pressure and flow?

This differential pressure (Δp) is then a measure of the flow rate through the device. In simple terms for a given size of restriction, the higher the Δp, the higher the flow rate. The relationship between the differential pressure and flow rate is derived from Bernoulli's equation.

What is differential flow?

The differential flow meter is the most common device for measuring fluid flow through pipes. Flow rate and pressure differential of fluids such as gases,vapors and liquids are explored using the orifice plate flow meter. ... Pressure taps are added on each side of the orifice plate to measure the pressure to differential.

What is a good Magnehelic reading?

With clean filters in the unit the magnehelic guage reading will be very low, somewhere between zero and one is a good rule of thumb, although this could be higher if the airflow is higher, the higher the airflow or air velocity going through the filters the higher the clean filter pressure drop.

How does a differential pressure sensor work in HVAC?

Differential pressure sensors measure the pressure drop of flow elements such as an orifice or a measuring cross in order to determine the volume flow. The sensor is located in a bypass to the main flow.

What is a Magnehelic pressure gauge used for?

The Magnehelic® gage is the industry standard to measure fan and blower pressures, filter resistance, air velocity, furnace draft, pressure drop across orifice plates, liquid levels with bubbler systems and pressures in fluid amplifier or fluidic systems.

What is HVAC in pharma?

Introduction. Heating, ventilation and air-conditioning (HVAC) play an important role in ensuring the manufacture of quality pharmaceutical products. A well designed HVAC system will also provide comfortable conditions for operators.

Who TRS differential pressure?

According to WHO guidelines on HVAC system, 10-15 pascals of differential pressure is maintained between manufacturing and surrounding areas. The aseptic area should always be highly pressurized than the non-aseptic area and air flow should be always from the aseptic to non-aseptic area.
