No, they will all run the same speed.

Do fan splitters affect performance?

splitter do not reduce power it only split between the 2 fan and they receive ful power but it will only read one speed sensor for one fan .

Is using a fan splitter bad?

You will be safe using a fan splitter as long as you the fans you are connecting does not draw more current than the motherboard header provides.

Are fan splitters good?

They're safe. The reason why the fan connects to the motherboard is so that the motherboard can tell the fan when to ramp up its speed (they don't run at full blast unless they need to).

What does a fan splitter do?

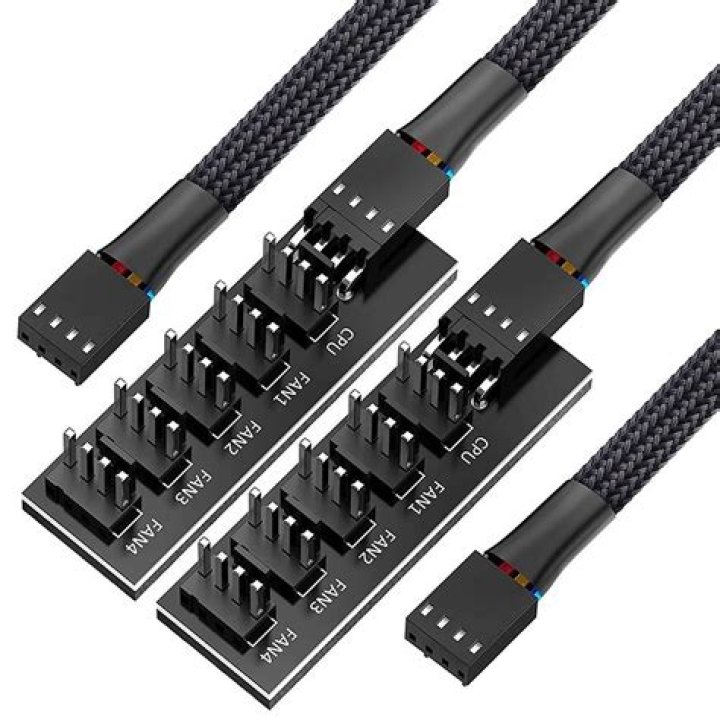

Gelid's 1-to-4 PWM Fan Splitter allows the user to connect up to four PWM fans from just one PWM fan header on the motherboard. ... The cable has one PWM connector with fan speed signal wire which is connected to the first fan. The extra wire on that connector will feed back the speed of that first fan to the motherboard.

How To Add Extra Fan Headers To Your PC Build

41 related questions found

Do fan splitters reduce speed Reddit?

Yes, because the motherboard controls the speed by varying the voltage and the splitter just connects the fans in parallel, with no intelligence in between.

How many fan splitters can I use?

So there's a "rule of thumb": you can connect up to TWO fans (normal ones) to any mobo fan header, but NOT MORE. That is why a Y-splitter with only two outputs can work. Although you can buy splitters with more than two output connectors, DO NOT use them!

Do I need fan splitters?

Don't use a splitter. Your motherboard probably can't handle 5 fans on one fan header, especially if 2 are LED fans. Instead, plug the fans straight into the power supply with MOLEX connectors. You can even use a fan controller if you like.

Can I use 2 fan splitters?

You don't need to go Molex - you have enough mobo fan ports to add 4 fans if you use splitters. And Mattios is wrong - connecting 2 fans to one mobo fan port using a splitter does not change the fan speeds. Most mobo fan ports can supply enough current to support two fans, but more than 2 on one port is risky.

Can I use a splitter on a fan hub?

It depends on the amount of fans you plan to connect to your MoBo. If your MoBo has 1-2 4-pin fan headers and you plan to connect 2-4 fans to it, then use Y-splitter by connecting 2 fans to one MoBo fan header. But if you have 6+ fans, use PWM fan hub.

How many fans can a single fan header support?

Most motherboard headers will provide 1 A, so do not connect more than 4 fans to one header. Some motherboards have headers that can provide more (e.g., mine do 2 A) so you could attach more.

What is a hybrid fan header?

Hybrid Fan Headers detect whether the cooling device uses PWM or Voltage mode and automatically switches settings accordingly. ... Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

Do Noctua fans come with fan splitters?

Noctua NF-A12x25-PWM comes with a splitters, but it splits a 4-pin into a 4-pin and a 3-pin.

How do 3 pin fans work?

A three pin connector is basically power (5/12 volt), ground, and signal. The signal wire measures how fast the fan is moving without any controls for the fan's speed. With this type, fan speed is typically controlled by increasing or decreasing the voltage over the power wire.

Can you plug a fan splitter into a fan splitter?

If you are referring to a two-way splitter plugged into another two-way splitter, then yes, it is possible. It just depends on the wattage of your headers and your fans.

Can I use a 4 pin splitter for 3 pin fans?

FAQ: Can I run 4-pin PWM fans on 3-pin fan headers? Yes! PWM fans come with a 4-pin connectors for fully automatic speed control via your mainboard's 4-pin PWM fan headers. ... When connected to 3-pin fan headers, the fan will run at full speed (unless the mainboard supports voltage based speed control).

What is PWM PC fan?

“PWM” stems from electrical engineering and is short for “pulse width modulation”, which is also known as “pulse-duration modulation”. What it means is that you can use it to almost freely control the RPM of a fan. The speed of regular fans can be modified by voltage regulation.

Is 2 fans enough for a gaming PC?

It depends on the hardware and layout of the case, but in general a single intake fan is enough for a general-use computer. For a low-end gaming PC, 1/1 is fine, 2/1 or 3/1 for higher-power hardware.

How do I control gigabyte GPU fans?

Please follow the steps below:

1. Press combo key [Fn] + [ESC] to activate CONTROL CENTER and select [QUIET], [POWER SAVING], [PERFORMANCE] or [EMTERTAINMAENT].
2. Check [SYSTEM PROGRAM].
3. Select a "FAN SPEED" mode: [MAXMUM]: Always run at maximum speed. ...
4. Options of [CUSTOM] : ...
5. Press [SAVE].

What is Cpu_opt Asus?

CPU_OPT, standing for “CPU Optional”, is mostly used when you have more than one fan on your cooler/radiator and you need someplace to plug it in. It's basically CPU_FAN without the “not booting if nothing is connected to it” part.
