It is recommended that gutters are placed under or 'behind' the drip edge of your roof. ... If gutters are installed below the drip edge, water can drip behind the gutter and cause damage to the wood supporting the gutter system.

Do gutters go behind or in front of drip edge?

If the overlap is too short, fix it by placing drip edge under the first row of roof shingles and be sure that the exterior edge is reaching over the gutter. If the gutter is lower than the bottom edge of the drip edge, install flashing behind the drip edge and over the back edge of the gutter to remove the gap.

How far should gutter be from drip edge?

Once you install the eave drip edge, you then apply underlayment, and once you apply underlayment, you then apply drip edge to the rakes. This brand suggests nailing the gutter to the roof edge every 16-24″, depending on local wind conditions.

How does drip edge work with gutters?

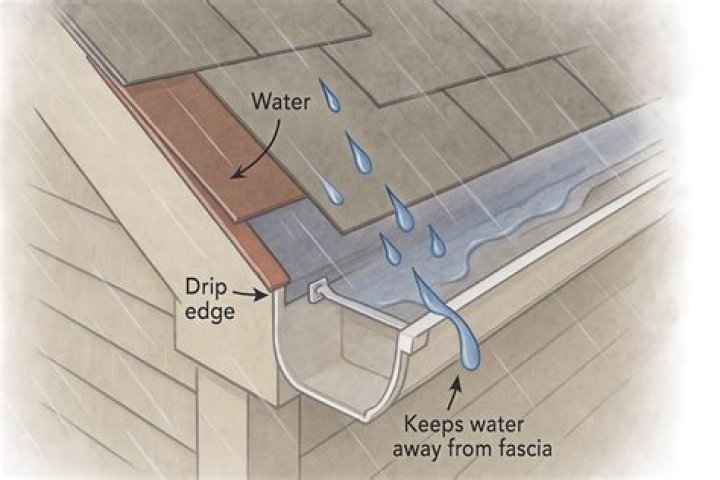

We like to think of drip edge as a piece of flashing that prevents water from going under the shingles or behind the gutter. ... Basically what it does is covers the gap between your shingles and the gutter. This makes sure no water goes under the shingles or behind the gutter which will wreak havoc on your home.

How do you install gutters with gutter apron?

There are only two steps needed to install a gutter apron. Step 1: Install the top section of your apron by slipping it under the starter shingle course. This refers to the layer directly above the roof sheathing. Step 2: Lift the roofing shingles and fasten your gutter aprons using roofing nails.

Getting Water behind your gutter? Does the Gutter go under, over or behind a drip edge?

39 related questions found

Why is water running behind my gutters?

Water Gets Behind the Gutter

If water is dripping behind your gutter, it's probably because it was installed without any flashing over the back of the gutter. The gutter apron will prevent the dripping. A gutter apron is a bent piece of flashing that tucks up under the shingles and over the gutter. ... aluminum flashing.

Do gutters need to be under drip edge?

It is recommended that gutters are placed under or 'behind' the drip edge of your roof. ... If gutters are installed below the drip edge, water can drip behind the gutter and cause damage to the wood supporting the gutter system.

Where should drip edge be installed?

Drip edge is installed around the whole perimeter of the roof. It is used to hold the underlayments down and create a watertight seal around the edge of the roof. Only the face of the metal is seen and is usually just white one to one and half inch stripe located right under the shingles and above the fascia.

Why is rain dripping between gutter and fascia?

If the gutters are clogged, it's possible that the water is overflowing the gutters and this is contributing to the leak. ... Water should run out the downspout and away from the house without filling the gutter. If the water fills the inside of the gutter, this means the gutters are clogged.

How much slope do you need for Eavestrough?

Gutter pitch, also known as gutter slope and gutter angle, is the degree gutters should slope to let water efficiently reach the downpipes. Gutter installation professionals advise, starting from the opposite corner of the location of a downspout, a ¼ inch pitch for every 10 feet of guttering.

Is it normal for water to sit in gutters?

Your gutter and downspout system's job is to channel rainwater away from your home—so standing water in your gutters isn't normal and could indicate a major problem. ... Standing water in your gutters needs to be handled immediately.

How much pitch does a gutter need?

To ensure that gutters drain properly, make certain they slope (½ inch for every 10 feet) toward a downspout. For gutter runs longer than 40 feet, it's best to pitch the gutter down from the middle to a downspout at each end.

Should gutters drip?

Over time, rain gutters often start to pull away from the roof, allowing water to drip over the gutter sides or between the gutters and the walls. Usually, this is due to gutter fasteners rusting or loosening after years of temperature extremes and exposure to water.

Should drip edge be tight to fascia?

A vertical drip edge lip extends down roughly 1 5/8" and as Steve points out, should not be set tight against the fascia board or water may run behind the gutter and down the fascia, inviting leaks and rot.

Is a drip edge necessary?

The 2012 International Building Code (IBC) requires drip edges for that type of roof. Regardless of the kind of roof you have, we highly recommend installing drip edges. Keep in mind that improper installation of any roofing component can create gaps, rendering any waterproofing solution useless.

How far should shingles overhang drip edge?

Shingles should not extend more than 3/4” (19 mm) past the drip edge. If shingles overhang the edge of the roof by more than 3/4” (19 mm), then they are not supported and may crack and break off.

Should there be a gap between gutter and fascia?

The best installation method is to leave a gap between the drip edge and the fascia board, about the width of a finger. The shingles should also overhang the drip edge 3⁄8 to 1/2 an inch.

How do I stop my gutters from dripping?

Gently and evenly apply a silicone-rubber caulking substance on the seams. Make sure that you apply a generous amount both inside and outside to seal the damage and prevent leaks. If you notice any small holes on the gutter, you can use roofing cement to patch them up.

What is a drip edge?

Drip edge is metal flashing installed at the edges of the roof to keep water away from your fascia and from getting underneath your roofing components. If your roof doesn't have drip edge, water gets behind your gutters and rots out both your fascia board and roof decking.

Is drip edge required by code?

The IRC now requires a drip edge for all asphalt roof installations and provides direction for its proper installation. Underlayment must lap over the drip edge at the eaves. At the rake edges (the sloped edges that are referred to as “gables” in the code text), the drip edge must be installed over the underlayment.

How do you paint drip edge?

Painting your drip edge does two chief things. First and foremost, when you paint and prime a drip edge, it's going to seal the drip edge itself against moisture damage. The primer will lay down a sealant foundation, while a water-resistant, exterior-approved paint will complement it, creating a waterproof barrier.
