Assume V to be the voltage produced by the cell in the primary circuit across the length AJ of the potentiometer wire, and E to be that produced by the cell of the secondary circuit.

What does a potentiometer do to current?

Rheostats are used to control the amount of current by varying its resistance. ... Potentiometers, trimmers, and rheostats are all variable resistors. Potentiometers and trimmers are used to create a variable voltage by varying the voltage between their wiper terminal and two ends.

Why does potentiometer not draw current?

Potentiometer is based on no deflection method. When the potentiometer gives zero deflection, it does not draw any current from the cell or the circuit i.e. potentiometer is effectively an ideal instrument of infinite resistance for measuring the potential difference.

Does current change in potentiometer?

A series circuit has whatever current it demands from the supply and is not normally constant by any means. When a resistor is added to a circuit, voltages can rise or fall and current may do the same. Potentiometers ARE NOT simply variable resistors. As the name implies they control "potential" i.e. voltage.

How does a potentiometer work in a circuit?

Potentiometers work by varying the position of a sliding contact across a uniform resistance. ... A potentiometer has the two terminals of the input source fixed to the end of the resistor. To adjust the output voltage the sliding contact gets moved along the resistor on the output side.

Potentiometers - Basic Introduction

32 related questions found

When the current in a potentiometer wire decreases the potential gradient?

If the current in the wire of potentiometer is decreased, the potential gradient will decrease and hence the position of zero deflection will occur at longer length.

What is a potentiometer circuit?

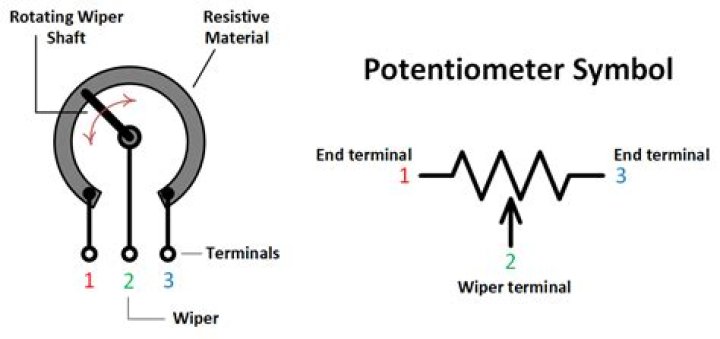

A potentiometer is a three-terminal resistor with a sliding or rotating contact that forms an adjustable voltage divider. ... Potentiometers are commonly used to control electrical devices such as volume controls on audio equipment.

Why potentiometer is more sensitive than voltmeter?

For measurement of potential difference, potentiometer is preferred in comparison to voltmeter because. A. Potentiometer is more sensitive than voltmeter. ... A voltmeter doesn't have infinite resistance and a potentiometer doesn't require passage of current through the galvanometer for measurement.

What does a potentiometer output?

Potentiometers work by varying the position of a sliding contact across a uniform resistance. In a potentiometer, the entire input voltage is applied across the whole length of the resistor, and the output voltage is the voltage drop between the fixed and sliding contact.

How does a potentiometer control voltage?

Measure voltage between the wiper and the potentiometer end connected to the negative (-) side of the battery. Adjust the potentiometer mechanism until the voltmeter registers exactly 1/3 of total voltage. For a 6-volt battery, this will be approximately 2 volts.

How does a potentiometer measure potential difference?

A potentiometer is an instrument for measuring voltage or 'potential difference' by comparison of an unknown voltage with a known reference voltage. ... At that point the galvanometer draws no current from the unknown source, and the magnitude of voltage can be calculated from the position of the sliding contact.

How can potentiometer be used to measure potential difference?

Working and Theory: Close key K and adjust the resistance from resistance box so that the potential across the potentiometer wire is grated then which is to be measured. Close key K₁. The current flows through R₁. A potential difference is developed across R₁.

Why potentiometer is more useful than voltmeter in measuring potential difference?

Potentiometer is better for measuring the potential difference than the voltmeter because. it uses a long wire. it uses an auxiliary battery of large e.m.f. it does not disturb the potential difference to be measured.

What is the function of the potentiometer in the illustration circuit?

They are used to accurately measure voltage and help achieve a variable voltage from a fixed-voltage source. They are passive devices which means they do not need power supply or additional circuits to function.

Can I use a potentiometer to reduce voltage?

You can use a voltage divider with one of the resistors being a potentiometer to create a lower voltage, the problem is that your voltage out will depend on both the voltage in as well as the load of the output (ie, what your voltage regulator is powering).

Why potentiometer is better than voltmeter?

The potentiometer is preferred over voltmeter when there is a measurement of emf of the cell because the potentiometer does not draw any current as it is a null device. Whereas voltmeter draws current from the cell.

When the current in a potentiometer decreases?

On decreasing the current through the potentiometer wire, the potential gradient along the wire will decrease. Hence, the position of zero deflection will occur at a longer length.

Why do we prefer potentiometer with longer wire?

A potentiometer with longer bridge wire will have a small potential gradient. Due to it, it becomes more sensitive. Hence it is preferred.

What will happen if length of potentiometer wire is increased?

The accuracy of potentiometer can be increased by decreasing the potential gradient, potential gradient can be decreased by increasing the length of potentiometer. Hence the increase in length of potentiometer wire increase s the accuracy . Hope this helps!

How do Trimpots work?

A trimpot or trimmer potentiometer is a small potentiometer which is used for adjustment, tuning and calibration in circuits. When they are used as a variable resistance (wired as a rheostat) they are called preset resistors.

Why do potentiometers have 3 terminals?

A 3 terminal pot used with 3 terminals, is basically just a voltage divider. As you move the wiper, you increase one resistor in the voltage divider, while decreasing the resistance in the other. So a 3 terminal pot is a variable voltage divider.

Why is ten wire potentiometer?

As the length increases, the potential decrement per unit length will become less and hence accuracy increases which makes it more sensitive. So ten wire potentiometer is more sensitive than a four-wire one.

Why does a potentiometer measure potential more accurately?

We know that the potentiometer is used to measure the potential difference between the two points in a circuit. The resistance of the potentiometer is very high. ... Therefore, the circuit is in an open circuit state as no current flows through the ends of the potentiometer. So, the option (A) will be the correct answer.

How do you find the current in a potentiometer?

Potential gradient is calculated as K = V/L, where V is the voltage across the potentiometer wire and the L is the length of the wire in the potentiometer. So the unit of potential gradient is volts/meter. We know that by Ohm's law Voltage V = I R, where I is current flowing through the circuit and R is the resistance.
