A split-phase motor has no capacitance in the auxiliary circuit. ... A split-phase motor has significantly lower torque at starting than any of the capacitor motors due to the reduced phase angle between main and auxiliary winding currents.

Where is the capacitor added to a split-phase motor?

The capacitor-start/capacitor-run motor , uses both start and run capacitors located in the housing connected to the top of the motor. When the motor is started the two capacitors are connected in parallel to produce a large amount of capacitance and starting torque.

Does a permanent split capacitor motor need a capacitor?

A PSC motor uses a capacitor (a device that can store and release electrical charge) in one of the windings to increase the current lag between the two windings. Both the capacitor (auxiliary) winding and the main winding remain in the circuit the entire time the motor is running, hence the name “permanent.”

Do all single-phase motors have capacitors?

Answer: There are three common types of single-phase motors named capacitor motor, shaded pole motor and split phase motors. Shaded pole and split phase single-phase motors do not require a capacitor to run.

Do all electric motors have capacitors?

It's a standard induction motor. Not all designs need a start capacitor to work. If the start winding is wound with a smaller gauge wire with a considerably higher resistive than inductive values than the main run windings it will create a offset phase lag just like a capacitor start motor uses to get going.

Start Capacitors & Run Capacitors for Electric Motors - Differences Explained by TEMCo

16 related questions found

Why does a single phase motor need a capacitor?

Some single-phase AC electric motors require a "run capacitor" to energize the second-phase winding (auxiliary coil) to create a rotating magnetic field while the motor is running. Start capacitors briefly increase motor starting torque and allow a motor to be cycled on and off rapidly.

Do AC motors need capacitors?

For a permanent-split capacitor type AC motor (also known as capacitor start and run AC motors), a capacitor is required for proper operation.

How can you tell the difference between a run capacitor and a start capacitor?

The start capacitor creates a current to voltage lag in the separate start windings of the motor. The current builds up slowly, and the armature has an opportunity to begin rotating with the field of current. A run capacitor uses the charge in the dielectric to boost the current which provides power to the motor.

Can you run a pump without a capacitor?

The motor will run fine without the capacitor. However, the problem comes if the motor stops and tries to restart. Say for instance you have a power blip for a second or two. The pump will shut down and not be able to restart, therefore ruining the motor.

Why do some single phase motors have two capacitors?

One of the two stator windings is fed by the single-phase supply; as the voltage produced in the second winding has to be out of phase with the first finding by 90°, a capacitor is connected in series with the second winding. ... Hence, capacitor motors should start up to the rated speed with as little load as possible.

How do I know if my motor capacitor is permanent split?

The Permanent Split Capacitor motor also has a cage rotor and the two windings named as main and auxiliary windings similar to that of a Capacitor Start and Capacitor Start Capacitor Run Motor. It has only one capacitor connected in series with the starting winding.

What is the basic difference between a split-phase motor and a capacitor motor?

The two-phase rotating field developed in the stator of the capacitor motor is much more symmetrical than the rather “lopsided” one produced in the resistance-start, split-phase motor. The addition of the capacitor results in a quieter running motor with a much greater starting torque.

What is the difference between the capacitor motor and split type motor?

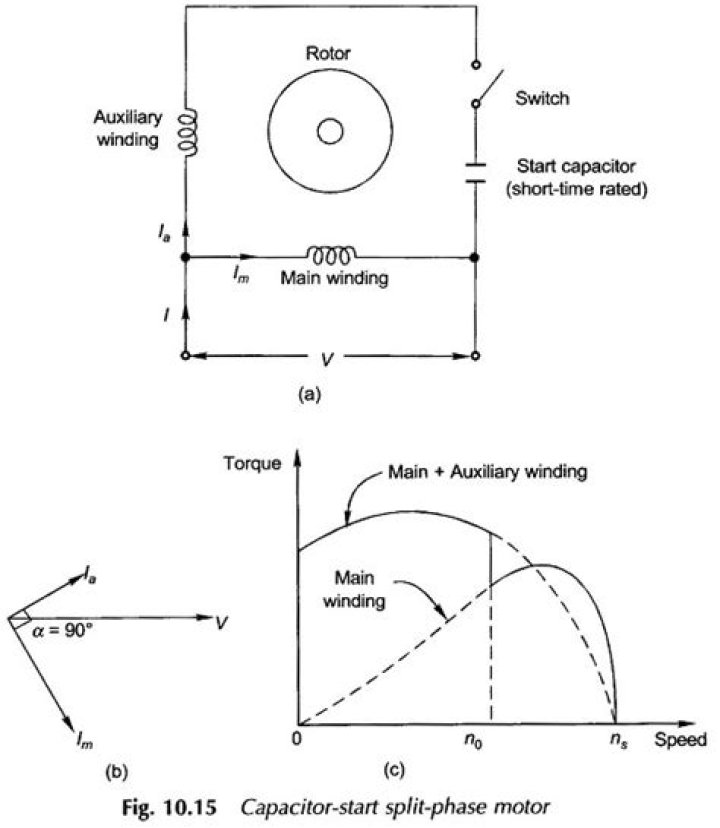

A capacitor-start induction motor only has a capacitor in series with the auxiliary winding during starting. ... The auxiliary winding of a resistance split-phase motor develops a phase difference versus the main winding during starting by virtue of the difference in resistance.

What is the main advantage of capacitor motors over split-phase types?

These motors have higher starting as well as running torque. This is the main advantage of capacitor motors over split-phase types. In the beginning, the split phase motor was designed by keeping the difference of resistance to reactance (inductive) ratio in the main winding and starting winding.

What is a split capacitor motor?

A Permanent Split Capacitor (PSC) Motor is a type of single-phase AC motor; more specifically, a type of split-phase induction motor in which the capacitor is permanently connected (as opposed to only being connected when starting). ... Single-phase: The type of power supply used in residential homes.

Where are capacitor start split-phase motors used and what are two practical applications of this motor?

Applications of the Capacitor Start Motor

• These motors are used for the loads of higher inertia where frequent starting is required.
• Used in pumps and compressors.
• Used in the refrigerator and air conditioner compressors.
• They are also used for conveyors and machine tools.

Why do pumps have capacitors?

To start the motor, a secondary start winding uses a starting capacitor to introduce a rotating electric field. This rotating field is not constant, but is sufficient to start the motor spinning. When the motor reaches operating speed, the capacitor shifts to the run winding to control the speed of the motor.

Why does a pump need a capacitor?

A capacitor is a an electronic device that stores energy. In a single phase bore pump a start capacitor increases the starting torque for a short while and then brings the motor rotation up to a rate approaching the speed at which it will run the pump constantly.

Will a motor start with a bad run capacitor?

When a capacitor short-circuits, the winding in the motor may burn out. When a capacitor deteriorates or opens, the motor has poor starting torque. Poor starting torque may prevent the motor from starting, which will usually trip the overloads.

Why do AC motors need a capacitor?

Some single-phase AC electric motors require a "run capacitor" to energize the second-phase winding (auxiliary coil) to create a rotating magnetic field while the motor is running. ... This hesitation can cause the motor to become noisy, increase energy consumption, cause performance to drop and the motor to overheat.

Can I use a run capacitor in place of a start capacitor?

The capacitance and voltage ratings would have to match the original start capacitor specification. A start capacitor can never be used as a run capacitor, because it cannot not handle current continuously.

Do three phase motors have capacitors?

The 3 phase motor does not need a Capacitor. ... A two-phase supply is created from a single phase supply with the help of additional starting windings or auxiliary winding.

What type of motor uses a start capacitor only?

Motor start and run capacitors are used in single-phase AC induction motors. Such motors are used whenever a single-phase power supply is more practical than a three-phase power supply, such as in domestic appliances.

What does a capacitor look like?

In a nutshell, it looks like a large battery, usually shaped either like a cuboid or a cylinder. When it works properly, the capacitor will send an energy surge to your AC's motor, and voilà! ... Now that you know what a capacitor is, common sense might show you some signs it isn't working properly.
