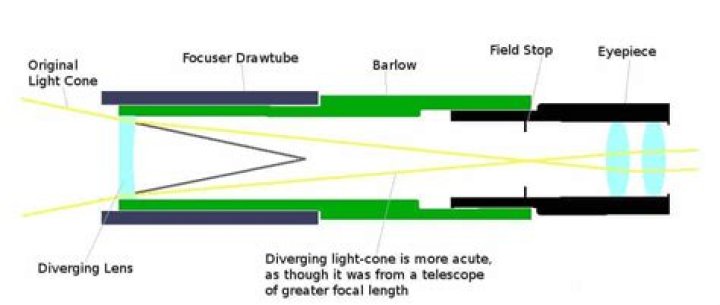

Barlow lenses are concave or negative lenses that amplify or magnify the image produced by your telescope. They work by lengthening the converging cone of light from the scope, effectively increasing its focal length.

Does a Barlow lens double the focal length?

A Barlow Lens, however, increases the magnification by effectively increasing the focal length of the telescope instead. Thus, giving us the ability to use a wider field of view for lenses to achieve the same magnification. A 2X Barlow lens doubles your telescope's focal length while a 3X Barlow lens triples it.

How does a Barlow affect field of view?

A barlow lens increases magnification by some factor. A 2X barlow will double the magnification of any given eyepiece. But it does not affect that apparent field of view of the eyepiece, the AFOV.

What do Barlow lenses do?

In microscopy the Barlow lens is used to increase working distance and decrease magnification. The lenses are "objective lenses" that are mounted in front of the microscope's last objective element. Barlow lenses for microscopes can be found with magnifications ranging from 0.3× to 2×.

Is a 2x or 3x Barlow lens better?

To put it simply, Barlow lenses are a cost-effective way to increase the magnification of your eyepieces. ... Their effect is to increase the magnification of any eyepiece used with them, usually 2 or 3 times. As you'd expect, a 2x Barlow doubles your eyepiece magnification, whilst a 3x trebles it.

Barlow Lens - Complete Overview and Function

45 related questions found

Does Barlow change eye relief?

Most types of Barlows will increase the eye relief of an eyepiece. The exceptions to this are telecentric devices like Powermates which do not change the eye relief at all. Shorty Barlows increase the eye relief moreso than standard barlows of the same magnification factor.

Are Barlow lenses worth it?

Every amateur astronomer should consider the Barlow lens as an extremely useful tool. One of the greatest advantages of say, a 2x Barlow Lens is that it doubles the magnification of your eyepieces, which can also be effectively seen as doubling your eyepiece collection.

What is the difference between a Barlow and a focal extender?

They both do the same thing, but differently. The typical Barlow has 2 or 3 lens elements, and actually increases the eye relief on a given eyepiece when used with the barlow. This may or may not be desirable. The focal extenders or Powermate (Televue) have 4 elements, and will maintain any eyepieces given eye relief.

How does a Barlow affect focal ratio?

By increasing the focal length of a telescope, a Barlow also increases its focal ratio. For example, using a 2X Barlow with a 250mm f/5 telescope (focal length 1,250mm) effectively converts that scope to a 250mm f/10 scope (focal length 2,500mm).

Does a Barlow reduce light?

Yes, it's a huge amount of light loss. A Barlow increases the linear size of the target when it magnifies. So a 2X Barlow makes the image of the moon twice as big. But illumination is a function of area which changes by the square of the magnification, or in this case, four times greater.

How do you increase the focal length of a telescope?

You can do that by inserting a Barlow lens in front of the eyepiece. A Barlow lens is a diverging lens, that is to say, this type of lens causes light rays to spread out. When used in a telescope, a Barlow lens increases the telescope's focal length, thus, magnifying the image.

Which telescope lens is stronger 10mm or 20mm?

The larger one is normally between 20mm and 25mm and is the lower power (lowest magnification). The smaller (higher magnification) is normally around 10mm. ... A larger image to start with will allow the eyepiece to produce a larger image to view (higher magnification).

Can I use 2 Barlow lenses together?

Good news, you can stack two 2x Barlow lenses and get the same 4x power! Stacking Barlows doesn't add the factors, it multiples them – thus stacking a 2x with a 3x gets you 6x.

Where do you put a Barlow lens?

The barlow lens is typically inserted between the diagonal and the eye- piece, for refractors and Schmidt-Cassegrain telescopes (Figure A). For reflectors, the barlow inserts directly into the eyepiece holder of the focuser drawtube (Figure B).

Why are Barlow lenses blurry?

The Earth's atmosphere also plays an important part in limiting the maximum magnification you can use. Instabilities in the atmosphere such as heat radiating from the ground and surrounding buildings, high altitude winds, and other weather conditions can cause your image to blur.

How do you increase the focal length of a lens?

Focal Length Extenders/Multipliers

Another way to increase the magnification of a machine vision system is by using a focal length extender. A focal length extender is like a spacer in that they are both placed in between the back of the lens and the camera.

Can you use a Barlow lens with a zoom lens?

A Barlow and zoom works great but generally with faster scopes where it becomes somewhat obselete, as others point out.

Can you stack Barlow?

Yes, stacking Barlow lenses is a common practice to effectively increase focal length by multiplying their individual focal lengths.

Can you use a Barlow lens on a spotting scope?

It should also be noted that while Barlow lenses that feature 1.25” mounting tubes will physically fit the eyepiece mounting port of these Celestron spotting scopes, their long tube length makes them optically incompatible with the shorter back focus lengths of the scopes, therefore they should not be used as focus ...

What lens is best for Mars?

Generally, a magnification of 30-50x the aperture (in inches) works well on nights of average-to-good seeing. For example, if you have a 4-inch telescope, try 120x to 200x. If you have an 8″ scope, try 240x to 400x. Again, experiment to get the best view each night.

What is the best focal ratio for a telescope?

For such objects, a focal ratio of f/10 or more is ideal. But if you want to see wide views of star clusters, galaxies, and the Milky Way, a lower focal ratio is better. You get less magnification, but you see more of the sky. Wide field telescopes have a focal ratio of f/7 or less.
