Very expensive voltmeters are often made to measure “true RMS”, because that is what is desired. Low-cost voltmeters approximate the RMS value. To approximate the RMS value for a sine wave, one could simply find the peak value of the sine wave and multiply it by .

Does ammeter show RMS value?

Hint: An AC ammeter measures the RMS value of the AC current. The RMS value of the AC current is the same value of direct current which when passed through a resistor for the same time produces the same amount of heat as the AC current.

What do AC meters show is it the RMS or peak voltage?

What do AC meters show? Is it the RMS or peak voltage? AC voltmeters and ammeters show the RMS value of the voltage or current. DC meters also show the RMS value when connected to varying DC provided that the DC is varying quickly; if the frequency is less than about 10Hz you will see the meter reading fluctuating.

What value does a voltmeter measure?

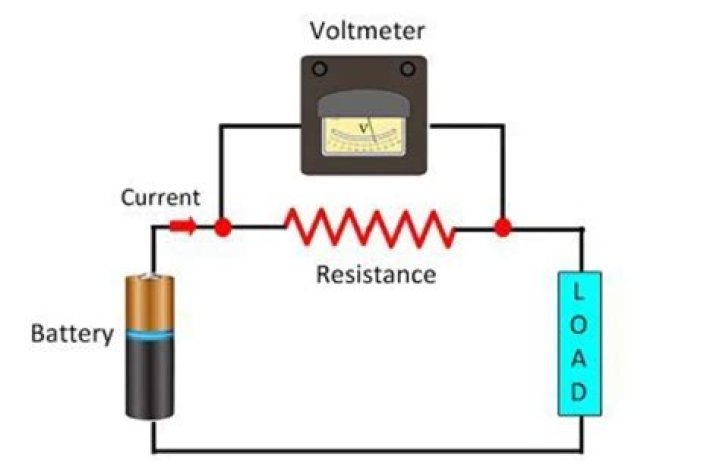

As its names implies, a “Voltmeter” is an instrument used for measuring voltage (V), that is the potential difference present between any two points within a circuit. To measure a voltage (potential difference), a voltmeter must be connected in parallel with the component whose voltage you wish to measure.

Why do ammeters always measure RMS value?

These meters measure AVERAGE value, not RMS. An AC meter is calibrated to read RMS voltage with a sinusoidal waveform. These meters can indicate the exact voltage at some particular point in time IF the waveform is changing so slowly that the meter needle can follow the waveform.

What is RMS value | Easiest Explanation | TheElectricalGuy

43 related questions found

Do I need a True RMS meter?

If you need to measure the voltage or current of AC signals that are not pure sine waves, such as when you're measuring the output of adjustable speed motor controls or adjustable heating controls, then you need a “true RMS” meter.

How do you find true RMS?

A True RMS measurement is obtained by first squaring the signal, then averaging the squared signal and finally taking the square root of that average (right side of Figure 1). The result is the true power (heating value) of the waveform.

Does a voltmeter measure RMS?

A voltmeter is used to measure DC voltages and AC voltages. The DC voltmeter is not measuring RMS voltage. ... The DC component is the average voltage of the waveform. The average voltage is easier for a meter to measure than RMS, so it is fortunate that one usually only wants the DC average value, and not the RMS value.

Does a multimeter measure peak voltage?

Some meters are designed to display peak values, but these are usually for specialist purposes. Note that while many modern multimeters have a "peak hold" feature, this will display the peak displayed voltage since the peak-hold button was pressed and NOT the peak voltage for AC.

What is peak-to-peak voltage?

Peak-to-peak voltage is a parameter measured between the maximum signal amplitude value and its minimum value (which can be negative, as in this case) over a single period (Fig. 1). With a maximum value of 5 V, and a minimum value of -5 V, the peak-to-peak voltage is 10 V.

Is 120 volts RMS or peak?

The 120V is the RMS voltage. And the peak voltage for this is actually 170V. So the peak of this voltage is actually a whole lot bigger than 120V. And if you look at it from peak-to-peak, then the voltage from an AC outlet is actually 340V peak-to-peak.

How do you find the RMS value of AC current?

To calculate rms value, we need to first calculate the average value of square of AC current / voltage for one time period. Then we find the square root of calculated average value. This gives the root mean square (rms) value.

Is AC voltage measured peak-to-peak?

Peak-to-peak amplitude is the total height of an AC waveform as measured from maximum positive to maximum negative peaks on a graph. Often abbreviated as “P-P”. ... Also known as the “equivalent” or “DC equivalent” value of an AC voltage or current. For a sine wave, the RMS value is approximately 0.707 of its peak value.

How do you convert RMS voltage to peak voltage?

Peak values can be calculated from RMS values from the above formula, which implies V_P = V_RMS × √2, assuming the source is a pure sine wave. Thus the peak value of the mains voltage in the USA is about 120 × √2, or about 170 volts.

What does an AC ammeter measure?

The instrument, which is used to measure the Alternating Current that flows through any branch of electric circuit is called AC ammeter.

What AC voltage does a multimeter measure?

Multimeters are generally not autoranging. You have to set the multimeter to a range that it can measure. For example, 2V measures voltages up to 2 volts, and 20V measures voltages up to 20 volts. So if you've measuring a 12V battery, use the 20V setting.

Does DMM measure ac rms?

Today's general purpose DMMs can accurately measures true RMS voltage or current, as long as the wave shape contains negligible energy above the meter's effective bandwidth (more on this in a bit). Most DMM's ACV and ACI functions measure the AC–coupled true RMS value (DC is rejected).

What does an RMS meter show?

True RMS responding multimeters measure the "heating" potential of an applied voltage. Unlike an "average responding" measurement, a true RMS measurement is used to determine the power dissipated in a resistor. The power is proportional to the square of the measured true RMS voltage, independent of waveshape.

What is a peak voltmeter?

: an instrument for measuring the maximum voltage during an alternating current cycle.

What is the peak voltage of the signal shown on the multimeter?

Peak mode measures the positive and negative peak voltage of a signal. For the 120 volt ac line, the peaks will read +169 volts and -169 volts (120 V x 1.414 = 169 V for a clean sine wave). Typically they will work for peaks that are 250 microseconds or longer.

How do you convert rms to peak to peak?

To compute the RMS voltage from the peak voltage, the peak voltage is multiplied by 0.7071. To compute the RMS voltage from the peak-to-peak voltage, the peak-to-peak voltage is multiplied by 0.35355. To compute the RMS voltage from the average voltage, the average voltage is multiplied by 1.1107.

What is RMS value of AC?

Root mean square or R.M.S. value of Alternating current is defined as that value of steady current, which would generate the same amount of heat in a given resistance is given time, as is done by A.C. current , when maintained across the same resistance for the same time.

How do you calculate RMS surface finish?

The RMS average measures the average height deviations of the mean line. RMS is calculated by measuring the height of a surfaces microscopic peaks and valleys, squaring those measurements, determining the average of the squares, and finding the square root of that number.

Which multimeter will be preferred for measuring non sinusoidal waves correctly?

Only the first two tools are commonly used, and both can accurately measure standard (pure ac) sinusoidal waveforms. Yet a true-RMS meter is widely preferred because it is the only one that can accurately measure both sinusoidal and non-sinusoidal ac waveforms.
