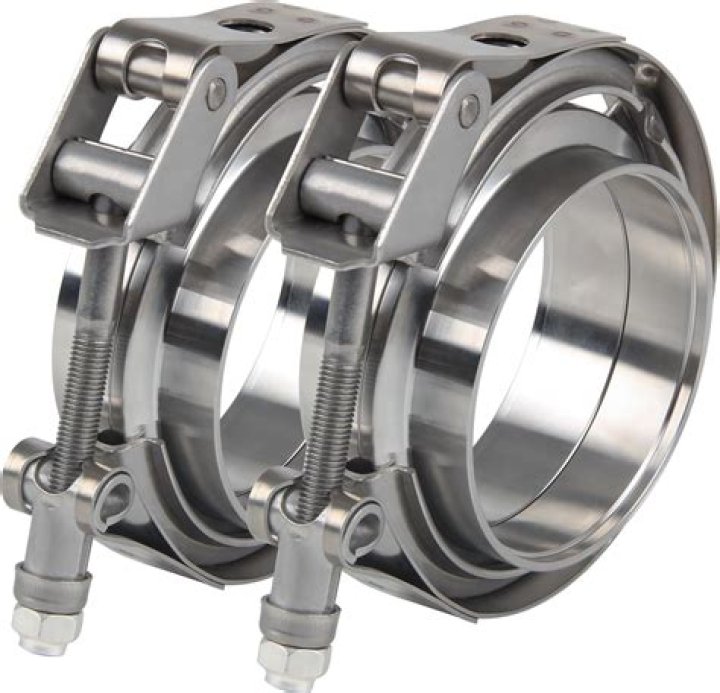

A correctly machined and installed v-band joint shouldn't leak.

Are V band clamps any good?

Another great advantage of a V-Band Clamp is the fact that the hotter they get the better they seal. Once the male and female ends are tight in position and the clamp is also firm and torqued up correctly, it is common knowledge that steel expands once its hot.

Are V band clamps good for exhaust?

V-Band clamp assemblies are an excellent alternative to traditional flange or slip fit tube connections and are ideal for high pressure exhaust and intake applications. ... The V-Band clamp design allows for a quick release, gasket free seal as well as superior positive retention versus other tube coupling methods.

How tight should V band clamps be?

Tighten the nut to approximately 70% of the required torque (on double-latch assemblies, torque both latches equally). Check to assure the coupling has seated over flanges equally around the periphery.

How are V band clamps measured?

Using a measuring tape or caliper, measure the outside diameter (OD) of the matching tube or pipe size that will be welded to the flange. If the tube or pipe is not available, measure the inside diameter (ID) of the counterbore of the weld side of the V-Band Flange.

How to FIX LEAKING Vbands - MARMAN FLANGES sold on Ebay by GBE Mandrel

30 related questions found

Do V bands use gaskets?

V-Band Flanges

Machined flanges should be used with a gasket for most connections. The bulge-formed flanges are typically lighter than machined flanges and the thinner section of the flange is closer in thickness to the base tube resulting in a more compliant joint. This helps minimize stress cracking in the weld.

Are all V-band clamps the same?

Most V-band clamps are designed for 20deg/side flanges. For a given flange diameter, there can be several different clamp widths for different flange thicknesses. Measure the flange diameter, pipe diameter and single flange thickness, and then call around.

What is a Marmon flange?

This is the V-Band turbine outlet weld flange for Borg Warner S200 and S300 turbos with the "4.21 Marmon" outlet. This stainless steel weld flange allows a 3" OD tube to slip fit inside. ... A Marmon flange simply means that there are two machined surfaces connected with a clamp.

How do you remove a V-band clamp?

Loosen up the nut on the v-band clamp all the way, then take a long screwdriver (or equivalent) and a hammer and gently tap the portions of the clamp that aren't letting go easily. They do tend to stick and need a little "persuasion". It should come right off after that.

What is bolt clamp?

T-Bolt Clamps are a hose clamp equipped with a t-bolt which can be tightened by a hex-nut. T-Bolt Clamps are used to seal liquid or air connections on hoses.

What is a band clamp used for?

A band clamp uses a long, flexible strap to hold a workpiece in place. It is ideal for clamping large or irregularly shaped workpieces, as the strap is designed to surround the whole workpiece, and its flexibility means it can accommodate many shapes and sizes.

How do exhaust band clamps work?

As the name suggests, it has a U-shaped bolt that fits around the pipe. As you tighten the clamp, the bolt pushes the pipe into a toothed brace that won't allow the pipe to turn or come apart.

What is V Band exhaust?

A universal V band flange is a method of connecting pipes together in conjunction with a v band clamp, The Vband flange is welded to the exhaust tube and then bolted together with the vband clamp. These are used mainly in the automotive industry for exhaust systems and waste gate return pipes.

Who invented V-band clamps?

History Of The V-Band Clamp Inventor

Herbert “Zeppo” Marx, inventor and company owner.

Who invented the V clamp?

May 13, 1958 A. D. HERMAN V-BAND CLAMP WITH INTEGRAL STRENGTHENING RIBS Filed May 21, 1957 INVENTOR. ALBERT D. HERMAN 3% a *ATTOEMEV5 V-BAND CLAMP WITH INTEGRAL STRENGTHENlNG RIBS Albert Dale Herman, Encino, Calif.

Who invented the band clamp?

1921Band clamps

Commander Lumley Robinson of the British Royal Navy patents the first band clamp (or hose clamp.)
