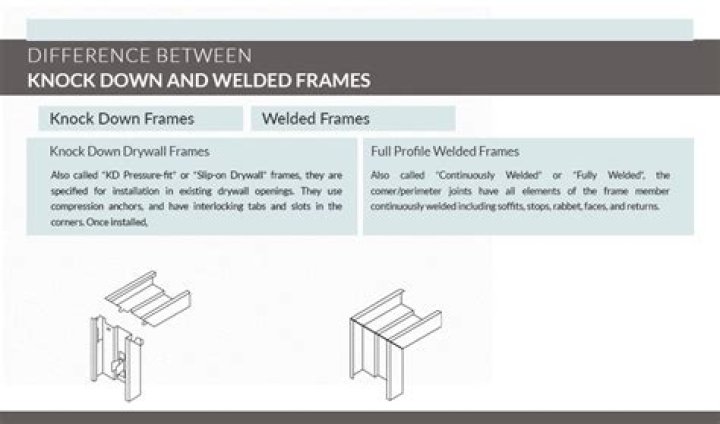

Answer: Yes, most knock down frames (with no welding option on a pressed steel frame) can be fire rated up to 90 minutes provided they are installed correctly in a fire rated partition.

Does a fire door need a special frame?

A fire door is more than just a door leaf. The door frame, hinges, ironmongery, seals and the glass in vision panels must all be selected, from installation instructions, to ensure that the door assembly design is properly fire resistant and that all the components work when used in combination.

Can hollow metal frames be fire rated?

Hollow metal is probably the most known and widely used fire rated framing around. It is tested to NFPA 80/252/257 up to 90 minutes and used in fire rated doors, sidelites, transoms and openings. that it is code-approved for all 20-90 minute applications.

Can a wood door frame be fire rated?

Fireframes® Hardwood doors and frames are designed for maximum durability and fire-rated performance. The system offers an attractive alternative to traditional hollow metal steel frames and can incorporate a wide range of fire-rated glazing materials with glass sizes that surpass traditional systems.

How do you know if a door frame is fire rated?

So, how do you know if your door is fire-rated? Look for the Underwriters Laboratories (UL) or Warnock Hersey (WH) fire label. ... The label may also be located on the top or bottom of the door. Some labels are embossed in the frame, so be sure to feel for any texturing/raised surfaces.

Fire Rated Doors and Frames

43 related questions found

Are all steel entry doors fire rated?

Are All Steel Doors Fire Rated? Yes, but just because a steel door is "rated" means that it meets your local code standard.

Do exterior doors need to be fire rated?

No, typically exterior doors are not fire rated, though they can be. There are a few instances that require an exterior door to be fire rated with the most common being located near an adjacent building or property line.

Can MDF doors be fire rated?

Most of the wood doors have a 20-minute fire rating. However, the MDF (medium density fiberboard) doors are available in 20-minute, 45-minute, 60-minute, and 90-minute fire ratings. Homeowners can choose from a variety of wood species and styles, to ensure that the fire-rated doors match the rest of the home's styles.

Can a solid wood door be used as a fire door?

Door Types and Door Frames

They are manufactured using a wooden frame. ... Solid core doors are available with UL-listed fire ratings up to 90 minutes. Figure 7.2.

What makes a 20 minute fire rated door?

20 minute without hose stream: These are openings that have successfully passed a 20 minute fire test but were not subjected to the hose stream test. These doors bare a label that specifically states 'Twenty-Minute-Rating tested Without Hose Stream'.

What makes a hollow metal door frame fire rated?

Five Basic Requirements for a Fire-Rated Opening

The wall, door frame, door, and hardware must all be fire rated. The door must be self-closing and positive latching (push/pull plates cannot be used on a fire-rated door) and UL approved hinges must be used.

Are there 2 hour fire rated doors?

Doors rated for 1-1/2 hours are required in 2-hour rated walls. These doors are commonly located in stairwells, or other enclosures of vertical passage through a building. They also occur in boiler rooms and in exterior walls that have the potential for severe fire exposure from the outside of the building.

Can fire doors be hollow?

Hollow doors are reasonably easy to detect using this method. The door is tested as a complete assembly or doorset, and can only work correctly if installed using the same compatible components as when it was tested.

What should you never do to a fire door?

Top things you should not do with fire doors

1. Never lock a fire door. ...
2. Never leave a fire door wedged open. ...
3. Never allow a fire door to be blocked. ...
4. Enfield Doors.

How thick should a fire door frame be?

Construction of a fire door

FD30 (30 minutes) fire doors are usually 44/45mm thick, as opposed to the standard door thickness of 35/40 mm, FD60 (60 minute) fire doors most commonly used in commercial settings are normally 54mm thick.

Can MDF linings or frames be used in fire door applications?

WARNING: For FD60 fire rated doorsets, MDF frames may be used with limited applications with regard to intumescent seal types and doorset dimensions.

Are oak doors fire-rated?

What are Fire-Resistant Doors? Oak Doors are already thick and sturdy, offering good fire-resistance and protection. These doors will probably already be great in terms of offering safety.

How thick is a 20-minute fire-rated door?

FIREGLASS 20

Fireglass^®20 is a 1/4" (6 mm) thick fire-rated and impact safety-rated glazing material. It is listed for use in doors with a fire rating requirement of 20 minutes.

What types of doors are fire rated?

Fire-Rated Doors

• Infinity Doors – 90-, 60-, 45- and 20-minute fire ratings available.
• Ovation Doors – 90-, 60-, 45- and 20-minute fire ratings available.
• Encore Doors – 90-, 60-, 45- and 20-minute fire ratings available.

Are glass doors fire rated?

All fire rated doors that contain glass panels must use fire rated glass. ... Depending on the type of glass, the glazed panel will also act as an insulator, protecting the rest of the site against the heat of the fire. All rated fire doors which contain glass must use fire rated glass according to building regulations.

Are Masonite steel doors fire rated?

Masonite Exterior Doors | Fire-Rated

Available in 20- and 90-minute ratings, Masonite conducts extensive fire door research to ensure that it meets the most stringent fire related building codes for long lasting durability and performance.

Do staircases need to be fire-rated?

As the stairway is the only means of escape from the upper floors, it must be constructed of material that is fire resistant for at least 30 minutes and all habitable rooms along it are required to have FD20-rated fire doors.

Are all exterior walls fire-rated?

Exterior walls generally have a rating based solely on interior occupancy use and structural requirements. However, exterior walls that are 10 feet or less from the property line are required to have a fire resistance rating based on the proximity to adjacent buildings and interior occupancy conditions.

Which walls should be fire-rated?

A: Yes, any space requiring an area separation wall (a wall separating adjacent living units) like apartments, condos and townhouses, uses a fire-rated system. They are also required in any egress area in the apartment building.

Is Aluminium door fire rated?

Understanding fire-rated steel-look windows and doors. It's important to know that aluminium has no fire-rating. ... This is both dangerous and not fit for purpose where a fire protection requirement exists.
