Scientific definitions for triple point The temperature and pressure at which a substance can exist in equilibrium in the liquid, solid, and gaseous states. The triple point of pure water is at 0.01°C (273.16K, 32.01°F) and 4.58 mm (611.2Pa) of mercury and is used to calibrate thermometers.

At what pressure is the triple point?

The point at which the lines intersect represents the triple point. At the pressure and temperature of the triple point, all three phases (solid, liquid and gas) exist in equilibrium. The triple point for water occurs at a pressure of 4.6 torr and 0.01^oC.

How does pressure affect triple point?

When a vapor with pressure below the triple point pressure is cooled, decreasing the vapor temperature results in decreasing molecular kinetic energy and decreasing the distance between molecules.

At what temperature and pressure will all three phases coexist?

All three curves on the phase diagram meet at a single point, the triple point, where all three phases exist in equilibrium. For water, the triple point occurs at 273.16 K (0.01ºC), and is a more accurate calibration temperature than the melting point of water at 1.00 atm, or 273.15 K (0.0ºC).

What pressure and temperature does the triple point occur for neon?

Question: The triple point of neon occurs at a temperature of 24.4 K and a pressure of 0.425 atm. Its normal boiling point is 27.1 K.

Thermodynamics - Explaining the Triple Point

29 related questions found

How do you find the triple point temperature and pressure?

where δV=M(1/dl−1/ds) where M is the molecular weight and d the densities of liquid and solid. T1 and P1 are temperature and pressure at the triple point. Thus you have to iterate T1 and P1 by fitting (say by least squares) to the calculated curves to whatever data you have to find the triple point.

What is pressure at a triple point of water in ATM?

Triple point of water

The single combination of pressure and temperature at which liquid water, solid ice, and water vapor can coexist in a stable equilibrium occurs at exactly 273.1600 K (0.0100 °C; 32.0180 °F) and a partial vapor pressure of 611.657 pascals (6.11657 mbar; 0.00603659 atm).

At what temperature and pressure can the solid liquid and vapor phases of co2 coexist in equilibrium?

(a) The solid, liquid and vapour phase of carbon dioxide exist in equilibrium at the triple point, i.e., temprature = – 56.6° C and pressure = 5.11 atm. (b) With the decrease in pressure, both the fusion and boiling point of carbon dioxide will decrease.

Is the temperature and pressure at which all three phases of matter are in equilibrium?

The point of intersection of all three curves represents the substance's triple point—the temperature and pressure at which all three phases are in equilibrium. At pressures below the triple point, a substance cannot exist in the liquid state, regardless of its temperature.

What happens at the triple point of water?

The triple point occurs where the solid, liquid, and gas transition curves meet. The triple point is the only condition in which all three phases can coexist, and is unique for every material. Water reaches its triple point at just above freezing (0.01° C) and at a pressure of 0.006 atm.

How does pressure and temperature affect the phase changes?

When thermal energy is added to a substance, its temperature increases, which can change its state from solid to liquid (melting), liquid to gas (vaporization), or solid to gas (sublimation). ... When the pressure exerted on a substance increases, it can cause the substance to condense.

At what temperature and pressure would show the triple point of carbon dioxide?

For carbon dioxide, the triple point is -56.6 °C and 5.1 atm. Below this point, either raising the temperature or lowering the pressure causes the solid form to sublime, or go directly into the vapor phase.

What will happen to the pressure if the temperature is increased?

The temperature of the gas is proportional to the average kinetic energy of the gas molecules. The particles moving faster collide with the container walls frequently with greater force. This causes the force on the walls of the container to increase and so the pressure increases.

What are the critical temperature and pressure for CO2?

Supercritical carbon dioxide (sCO. ₂

More specifically, it behaves as a supercritical fluid above its critical temperature (304.13 K, 31.0 °C, 87.8 °F) and critical pressure (7.3773 MPa, 72.8 atm, 1,070 psi, 73.8 bar), expanding to fill its container like a gas but with a density like that of a liquid.

What is triple point?

: the condition of temperature and pressure under which the gaseous, liquid, and solid phases of a substance can exist in equilibrium.

Which processes occur at the triple point?

At the triple point, all three phases (solid, liquid, and gas) co-exist. The processes that are occurring are condensation and vaporization, sublimation and deposition, and freezing and melting.

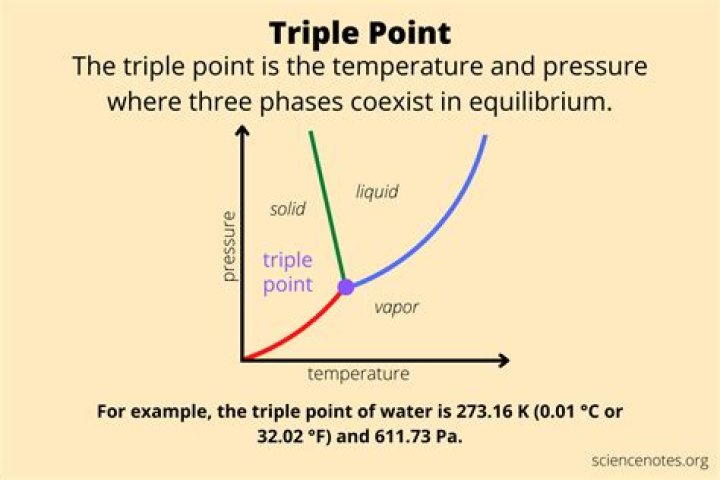

What happens at the triple point of a phase diagram?

The triple point is the point on the phase diagram where the lines of equilibrium intersect — the point at which all three distinct phases of matter ( solid, liquid, gas) coexist.

What phases are in equilibrium at the triple point at 95.31 C?

3 What phases are in equilibrium at the triple points? rhombic, monoclinic and vapour (at 95.31 °C and 5.1 × 10–6 atm); • monoclinic, liquid and vapour (at 115.18 °C and 3.2 × 10–5 atm); • rhombic, monoclinic and liquid (at 153 °C and 1420 atm);

What is the significance of the triple point in a phase diagram?

The triple point represents the combination of pressure and temperature that facilitates all phases of matter at equilibrium. The critical point terminates the liquid/gas phase line and relates to the critical pressure, the pressure above which a supercritical fluid forms.

At what temperature and pressure is CO2 a liquid?

The Liquid State:

Within a temperature range between -56.6 °C (-69,88 °F) and 31 °C (87,8 °F) and pressure greater than 5.2 bar and less than 74 bar (1'073,28 psi) respectively CO₂ is in its liquid state except at very high pressures.

Why CO2 does not melt at room temperature and pressure?

It's because at room temperature and normal pressure (atmospheric pressure), carbon dioxide is usually a gas. So when you take dry ice (solid carbon dioxide) and expose it to this temperature and pressure, it will try to return to the gas phase. ... At that pressure, dry ice would melt!

At what pressure does CO2 become liquid?

Liquid carbon dioxide forms only at pressures above 5.1 atm; the triple point of carbon dioxide is about 518 kPa at −56.6 °C. The boiling point of the liquid is -70°F to +88°F, depending on pressure. When vaporized at 60°F, the expansion ratio is 535:1. CO2 exists as a gas or solid below 60 psig.

What does Gibbs phase rule state?

Gibbs Phase Rule

Gibbs phase rule states that if the equilibrium in a heterogeneous system is not affected by gravity or by electrical and magnetic forces, the number of degree of freedom is given by the equation. F=C-P+2. where C is the number of chemical components. P is the number of phases.

Can water be all three states at once?

Water exists in three distinct phases at something called the triple point. ... At a certain energy molecules will have enough energy to evaporate, even if the water temperature is 0 degrees C. Because of these two effects it is possible for the water to exist as solid, liquid and gas at the same time.

What temperature does liquid water and steam coexist?

Answer: Liquid water and steam co exist at 100°c temperature. At that temperature water starts changing into vapour by absorbing the heat without any change in the temperature.
